Pocket Optical Power Meter, T9600XL-GE5

Catalog Number: T9600XL-GE5

A simple and reliable optical power meter with a large area 5 mm Ge detector for testing power and loss on fiber optic systems or free-space light beams up to +10 dBm. Ideal for: Plastic fiber, PCS, single mode, multimode, multi-fiber ribbon cable such as MMC, MPO 12 – 72 fiber up to 12 fibers wide, and LC/ SC etc fiber optic systems. This versatile meter is a popular MPO tester, providing high accuracy and simplicity of use. For all fiber optic Ethernet & Infiniband applications except 16 x 1 or 16 x 2 ribbon types.

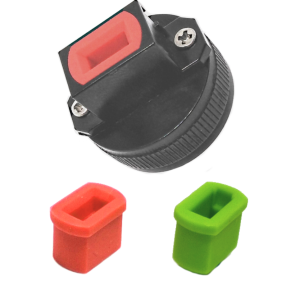

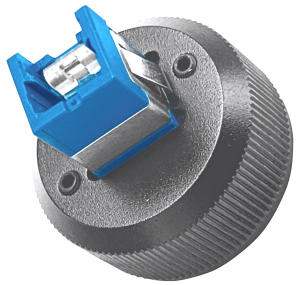

Optional connector adapter not included, order separately.

12 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
Small size, easy to use, rugged & reliable
dBm / dB / linear, 0.01 dB resolution
Display hold & max/min recording
Tone detector with Multi-Fiber ID
Large area detector for MPO applications
Easy to use TamperLock mode
Interchangeable connectors
Full QA reports
Made in Australia

Brochure T9600 A rev23

Usermanual ki9000

Attribute Name	Attribute Value
Detector type	GE (5 mm)
Response wavelength	600 ~ 1650 nm
Calibration wavelengths	660, 780, 850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm
Power range	+10 ~ -30 dBm (for 660,780,1610,1625 nm) / +10 ~ -40 dBm (for 850,1300,1310,1390,1490,1550 nm)
Mid-range linearity	0.06 dB (typical)
Total uncertainty	0.5 dB (max)
Wavelength sensitivity (± 30 nm)	0.04 dB (typical)
Response uniformity across detector	2 % (0.09 dB)
ID tone detection sensitivity	-37 dBm

Accuracy	±2 %
Calibration validity	3 Years (ISO/IEC 17025)
Resolution	0.01 dB
Polarization sensitivity	< 0.05 dB (typical)
Tone detection	200 ~ 2500 Hz ± 2 %
Power	2 x AAA (LR-03) Alkaline
Battery life	300 Hours
Auto-off	Selectable
Size	124 x 81 x 25 mm
Unit weight	0.15 kg
Shipping weight	0.5 kg
Operating / storage temperatures	-15 to 55 / -25 to 70 °C
Relative humidity	0 ~ 95 %
Warranty	3 Years
Country of Origin	Australia
