Pocket Optical Power Meter – T9600 Series

$691.50 – $2,452.35
Title Description Price Resellers
T9600A INGAAS OPM $691.50
T9600XL-GE5 OPM GE 5MM $1282.65
T9600-H3B OPM H3B $767.51
T9600XL-GE7 OPM GE 7MM $1486.89
T9600XL-SI5 OPM SI 5MM $2452.35
T9600A-H5 OPM H5 $1648.45
T9600A-VE OPM VE $1295.91

Accurate fiber power measurements wherever the job takes you.

The T9600 Series Pocket Optical Power Meter delivers fast, dependable, optical power measurements in a pocket-sized, rugged, field-ready package. Designed for fiber technicians, contractors, and network operators, it provides the accuracy needed to verify installations, troubleshoot network issues, and document performance with confidence.

Compact enough to fit in your pocket, but packed with professional-grade capabilities, the T9600A supports both singlemode and multimode fiber testing, offers interchangeable connector options, and features advanced tools that simplify everyday testing tasks. From acceptance testing and maintenance to fault isolation and network upgrades, it’s the power meter you’ll reach for every day.

With traceable calibration, exceptional battery life, and a durable design built for real-world environments, the T9600A helps you work faster, reduce retesting, and get the job done right the first time.

Optional connector adapter not included; order separately.

Professional-Grade Accuracy ISO 17025 traceable calibration and ±2% measurement accuracy provide dependable test results you can trust.

Supports Singlemode and Multimode Networks Measure optical power across a wide range of fiber applications, from enterprise networks to FTTx deployments.

Pocket-Sized and Field Ready Lightweight, compact design with integrated clip makes it easy to carry and use throughout the workday.

Interchangeable Connector Adapters Support multiple connector types with a flexible adapter system that reduces the need for additional test equipment.

Multi-Fiber ID Capability Quickly identify and verify individual fibers, helping reduce troubleshooting time and installation errors.

Large, Easy-to-Read Display View measurements clearly in indoor facilities, equipment rooms, and outdoor environments.

Measure Power and Loss Display absolute power (dBm), relative loss (dB), and linear power measurements with high resolution.

Power Averaging for Stable Readings Improve measurement consistency when working with modulated or fluctuating optical signals.

TamperLock™ Settings Protection Lock critical settings to maintain testing consistency across technicians and job sites.

Long Battery Life Up to 300 hours of operation helps minimize downtime and keeps you productive in the field.

Built for Daily Use Durable construction withstands the demands of installation, maintenance, and troubleshooting work.

Lower Cost of Ownership A 3-year calibration interval and 3-year warranty help reduce maintenance costs over the life of the instrument.

Attribute name Attribute Value
Detector typeInGaAs
Response wavelength600 ~ 1700 nm
Calibration wavelengths850, 1300, 1310, 1390, 1490, 1550, 1577, 1610, 1625 nm
Power range+5 ~ -60 dBm
Mid-range linearity0.04 dB (typical)
Total uncertainty0.3 dB (max)
Wavelength sensitivity (± 30 nm)0.02 dB (typical)
ID tone detection sensitivityup -50 dBm
Accuracy±2 %
Calibration validity3 Years (ISO/IEC 17025)
Resolution0.01 dB
Polarization sensitivity< 0.05 dB (typical)
Tone detection200 ~ 2500 Hz ± 2 %
Power2 x AAA (LR-03) Alkaline
Battery life300 Hours
Auto-offSelectable
Size124 x 81 x 25 mm
Unit weight0.15 kg
Shipping weight0.5 kg
Operating / storage temperatures-15 to 55 / -25 to 70 °C
Relative humidity0 ~ 95 %
Warranty3 Years
Country of OriginAustralia

Available Accesories

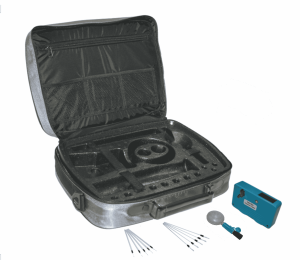

OPT155 CARRY CASE & CLEANING ACCESSORIES KI9000
