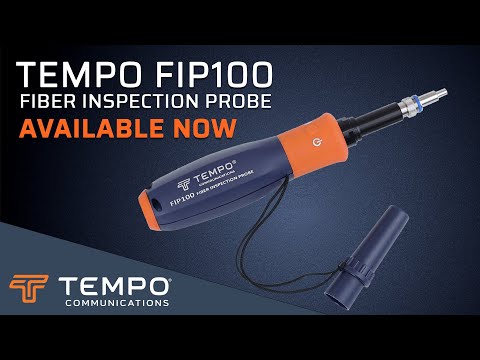

FIP100 Fiber Inspection Probe
Cat No: FIP100 KIT
UPC No: 810025411596
The FIP100 from Tempo is a fully automated inspection tool that provides fast and reliable analysis of fiber optic connector end faces and bulkheads.
With a single button press, the FIP100 automatically focuses, captures an image of the connector endface, and provides a pass/fail result.
The pass/fail status of the connector is instantly reported via a red/green LED on the probe. Detailed results are shown on the iOS or Android app, which provides PDF report generation and sharing.
Both apps are pre-loaded with pass/fail requirements from IEC 61300-3-35, as required by all major telecommunications service providers.
Product Features
- Test ferrule end faces and bulkheads compliant to IEC61300-3-35
- Single-handed, one-button operation
- Auto focus, auto-capture, auto test
- LED pass/fail indicator on probe
- Small form factor enables inspection of difficult-to-reach ports
- Create and share reports on Android and iOS devices
- IEC, IPC and user-defined inspection criteria
- Wide range of adapter tips
Related Products
OFL100 OTDR
Opti-Clean Reel Cleaner
1.25mm & 2.5mm Cleaning Swabs
Applications
- Verify connector cleanliness before connecting
- Certify connector condition on installation
- Document connector damage when troubleshooting
- Inspection is essential for proper fiber handling in all networks
Pass/fail results in seconds: With the press of a single button, the FIP100 auto-focuses, captures, centers and analyzes the end-face image to industry standard IEC 61300-3-35, IPC-8497-1, AT&T TP-76461 and other user-defined criteria.
Untethered operation: One-button operation and pass/fail LED indicator enables operation without reference to the mobile app.

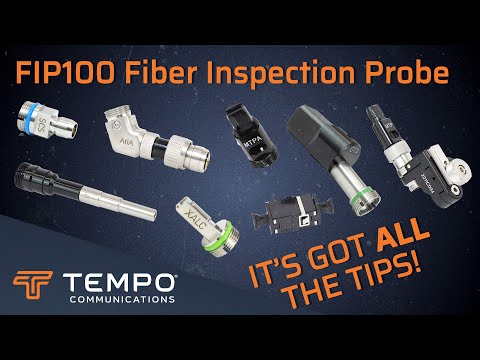

Wide range of adapter tips: Interchangeable adapter tips support fiber connector inspection for a wide range of patch cords and bulkhead-mounted connectors having either PC/UPC or APC polished end-faces.
Smart Device Apps:
- Auto focus, auto capture and auto test functions
- IEC, IPC, industry standard, and user-defined inspection rules
- Pinch-to-zoom fiber end-face images
- Report generation
- Multi-language Graphical User Interface (GUI)
- Day/time stamped job saving
| CAT NO | ITEM NO | UPC | Description | IMAGE |
|---|---|---|---|---|
|
FIP100 KIT
|
55504929
|
810025411596
|
Fiber Inspection Probe Kit
| |
|
FIP100 KIT - SC/APC
|
55505321
|
810025417574
|
Fiber Inspection Probe Kit, SC/APC
| |
|
FIP100 KIT -LC/UPC
|
55505322
|
810025417796
|
Fiber Inspection Probe Kit, LC/UPC
| |
|
FIPCC
|
55504932
|
810025411701
|
FIP100 carry case
| |
|
FIPPS
|
55504933
|
810025411831
|
FIP100 power supply with NA, EU, and UK adapters
| |
|
SCUPC BH
|
55504939
|
810025411886
|
SC/UPC Bulkhead Tip
| |
|
LCUPC BH
|
55504940
|
810025411893
|
LC/UPC Bulkhead Tip
| |
|
2.5MMUPC
|
55504941
|
810025411923
|
2.5mm Universal UPC Tip
| |
|
1.25MMUPC
|
55504942
|
810025412166
|
1.25mm Universal UPC Tip
| |
|
SCAPC BH
|
55504943
|
810025412197
|
SC/APC Bulkhead Tip
| |
|
LCAPC BH
|
55504944
|
810025412258
|
LC/APC Bulkhead Tip
| |
|
2.5MMAPC
|
55504945
|
810025412517
|
2.5mm Universal APC Tip
| |
|
1.25MMAPC
|
55504946
|
810025412623
|
1.25mm Universal APC Tip
| |
|
LCUPC BH60 L60
|
55505317
|
810025411176
|
LC/UPC Long Reach 60mm Bulkhead Tip
| |
|
U60 BH
|
55505318
|
810025410896
|
Universal 60 Degree Adapter Bulkhead Tip
| |
|
MPO BH
|
55505319
|
810025419097
|
MPO UPC and APC Bulkhead Tip
| |
|
FIPT ADAPT
|
55505320
|
810025417765
|
Adapter for VIAVI Tips
| |
|
OTAP BH
|
55505177
|
810025412616
|
OptiTap® Bulkhead Tip
|
| Attribute Name | Attribute Value |
|---|---|
| OPTICAL PERFORMANCE | |
| Field of View (FOV) | Live and Captured: 612 x 460 μm |
| Manual Detection Capability (minimum) | 0.25 μm |
| Auto Analysis Resolution | <1.0 μm |
| Stored Image Size | 2592 x 1944 (5M) pixels |
| End-face Illumination | Coaxial blue LED 476 nm |
| Maximum No Damage Live Fiber Power Level | +20 dBm |
| OPERATING FEATURES | |
| WiFi Characteristics | IEEE 802.11bng |
| Focus | Auto-focus (≤3 sec) and manual focus |
| Centering | Auto-centering (<1 sec) |
| Button Functionality | Power On/Off (>3 secs); Capture/Analysis/Auto-save/Live |
| Main LED Functionality | Blue = Connected to App, Green = Pass, Red = Fail |
| Magnification | Variable from 80X to 700X, in Live and Capture modes |
| Applications Compatibility | Android ≥4.0.3, iOS ≥8.1 |
| Image Capture with Pass/Fail Analysis | IEC 61300-3-35, AT&T TP-76461, IPC-8497-1, user-set criteria |
| Image File Format | JPEG, GIF |
| Image & Pass/Fail Results Storage | Yes |
| File Storage Capacity | Unlimited |
| Result Manager | Storage, rename, delete, transfer |
| Reporting | Built-in fillable PDF reporter |
| Supported Languages | English, French, German, Japanese, Korean, Russian, Spanish |
| PHYSICAL AND POWER CHARACTERISTICS | |
| Battery Type | Li-Ion, non-replaceable by user |
| Maximum Charger Current Draw | 1.2A, battery charge current + device consumption current |
| Operating Time (typical) | 60 hours d; 8 hours continuous |
| Recharge Time | ≤4 hours |
| Low-Battery Warning | Viewed on smart device |
| Charging LED Status; viewed on smart device | Red = Charging, Green = Fully Charged, Blinking Red/Green = Battery Fault |
| Power Save Features (Controlled by App) | Probe Auto-Off – disabled, 5, 10, 30, 60 minutes; Probe WiFi Not Connected – 5 minutes |
| AC Charger Voltage, Frequency, Current | 100-240VAC, 50/60Hz, 5VDC, 2A |
| Charger Jack | 0.9 x 3.2 mm barrel, center (tip) positive |
| Size (Max Diameter x Length) | Ø 40 x 226 mm (Ø 1.6 x 8.9 in) |
| Weight | 150 g (5.3 oz) |
| ENVIRONMENTAL CHARACTERISTICS | |
| Operating Temperature | 0 to +50 °C; 95% RH, non-condensing |
| Storage Temperature | -40 to +70 °C; 95% RH, non-condensing |
| COMPLIANCE | |
| CE/UKCA | |
| EU | Compliant to relevant EU Directives on health, safety, and environmental protection, and certified with CE marking |
| Safety/EMC/EMI | |
| IEC | Compliant to IEC 61010-1 for safety requirements for electrical equipment |
| EN | Compliant to EN 55011 for EMC requirements for industrial, scientific and medical equipment |
| FCC | Compliant to code of federal regulations FCC 47 CFR 15 on unlicensed transmissions |
| RoHS | |
| EU | Compliant to EU regulations Directive 2011/65/EU (RoHS 2) and Directive 2015/863 (RoHS 3) |
| Test Method | |
| IEC | Compliant to IEC 61300-3-35 for visual inspection of fiber optic connectors and fiber-stub transceivers |
| IPC | Compliant to IPC-8497-1 for cleaning methods and contamination assessment for optical assembly |
