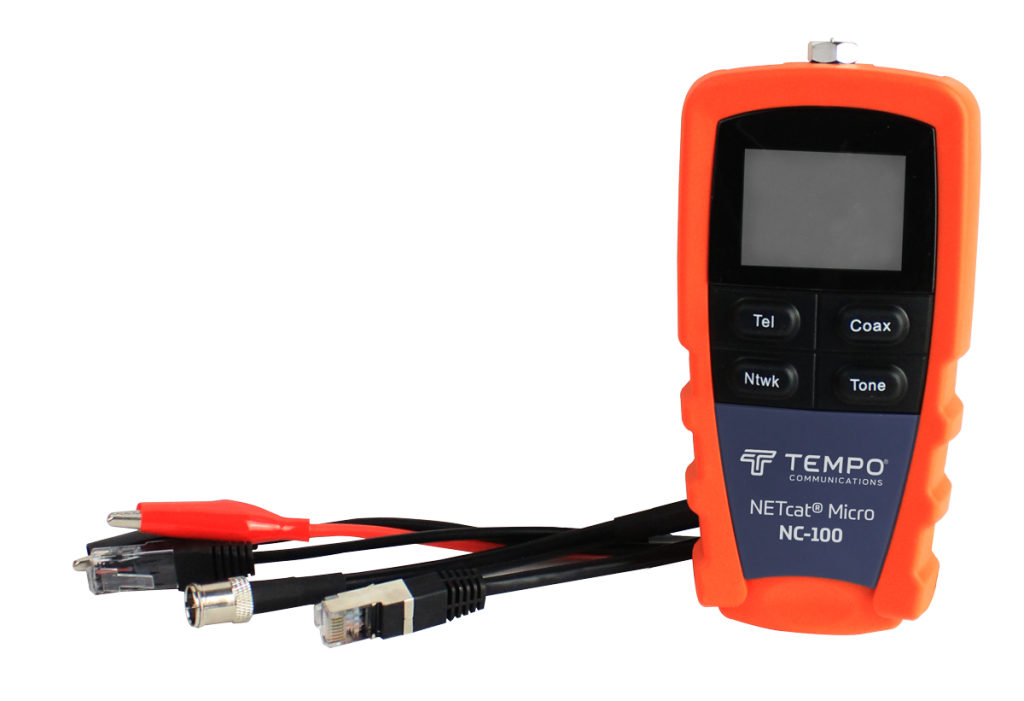

NC-100 NETcat® Micro Wiring Tester

Cat No: NC-100

Legacy UPC No: 783310236368

Where to Buy

Contact Sales

The NETcat® Micro Wiring tester is a device that verifies twisted pair and coaxial cables. It uses high-speed digital technology to check wiring continuity and correct allocation of wire pairs. NETcat Micro, NC-100 Tests shielded twisted pair (STP), unshielded twisted pair (UTP), and coaxial cables.

NC-100 NETcat® Micro Wiring TesterNC-100 NETcat® Micro Wiring TesterNC-100 NETcat® Micro Wiring Tester
  • Detects shorts, opens, reversed polarity, crossed, and split pairs.
  • Nested remote allows end-to-end testing of all wiring types.
  • Simple testing of LAN wiring and phone lines.
  • Warning of hazardous voltages.
  • Detection of common wiring and connector errors.
  • Tracing modes can be adjusted for high performance LAN cables
  • Tests shielded twisted pair (STP), unshielded twisted pair (UTP) and coaxial cables
  • TIA/EIA standard wiring pair verification for LAN
  • USOC standard wiring verification for telephone
  • Generates three distinct, selectable digital tone patterns for cable tracing and troubleshooting
  • Complete set of connector types standard (telephone, LAN, and coax)
  • Nested remote allows end-to-end testing of all wiring types
  • Checks for reversed telephone wires
Attribute Name Attribute Value
Backlight LED
Battery 9 V Alkaline Battery (PP3) (Not Included)
Buttons Four Momentary Contact Push Button
Size 33 x 70 x 150 mm
Display LCD Icon And Seven Segment Type
Pair Tracing Frequencies 577 Hz and 983 Hz
Humidity 0 To 95 PCT Non-Condensing
Interface Connections RJ45 Shielded Socket, RJ12 6-Way Socket, F-Type Threaded Female Coaxial Connectors
Minimum Split Cable Detectable 2 m to 3 m (5 ft to 10 ft); depends on cable type
Three User Selectable Cadences Alternating Frequencies Of 577 HZ And 983 HZ Are Produced At Three User Selectable Rates
Temperature Range -10 to +60 °C (Storage); 0 to +50 °C (Operating)
Digital wire-mapper and cable check tool for telephony & LAN twisted pairs and COAX cables Micro Digital Voice Data And Video Wiring
Weight 220 g (0.5 lb) (including remote unit and a typical battery)
