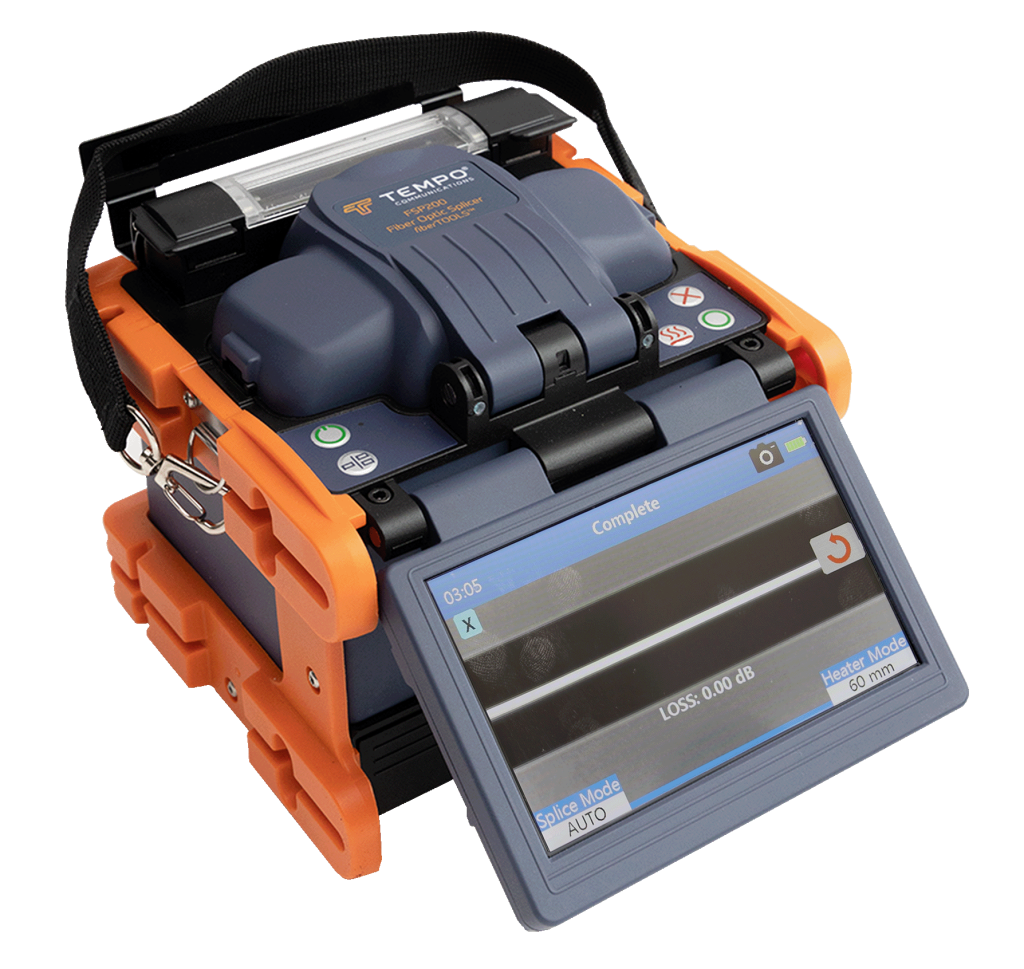

FSP200 Optical Fusion Splicer

Cat No: FSP200

The FSP200 touchscreen optical fusion splicer uses core alignment technology, which allows the technician to reliably fuse fiber optic cables with low splice losses in as little time as seven seconds. The intuitive user interface keeps the learning curve short and enables the technician to be productive in a very short time. FTT(x), P2P installations, and all standard fibers are supported with pre-qualified splicing profiles that can be modified and subsequently stored for more demanding fiber applications.

The FSP200 uses the Tempo Communications Splice on Connector, which provides a low loss, low return loss, and reliable connection that surpasses the failure-prone mechanical connector. Splice-on connectors also allow for easier fiber routing, which reduces fiber preparation since the splice-on connector is pre-cleaved and also eliminates the need for a splice tray.

The FSP200 is available in the popular Contractor Kit (FSP200-KIT2) which bundles the fusion splicer, FCL200 cleaver, an extra battery, and fiber strippers so the technician has all of the tools they will need to get the job done right. The Splicer and Cleaver Kit configuration (FSP200-KIT1) includes the FSP200 fusion splicer and FCL200 cleaver. See the Models section below for more details. Backed by a 3-year warranty.

FSP200 Optical Fusion SplicerFSP200 Optical Fusion SplicerFSP200 Optical Fusion SplicerFSP200 Optical Fusion SplicerFSP200 Optical Fusion SplicerFSP200 Optical Fusion Splicer
  • Core alignment six motor technology
  • Lowest insertion loss splicing technology
  • Seven seconds splicing
  • Five-second boot time
  • 200 complete cycles per battery charge
  • Compact and light weight for the most demanding jobs
  • Compatible with loose tube fibers
  • Screen shot capable
  • Drop tested to 76cm
  • Eighteen second shrink time
  • 5,000 burns electrode life
  • Attenuation mode capable
  • Password protection for anti-theft
  • Compatible with splice on connectors, SC, LC, FC and ST
  • IP52 compliant
  • On-board instruction manual
  • 5.0” Color LCD touchscreen
  • 3-year warranty
CAT NOITEM NOUPCDescriptionIMAGE
FSP200
55500052
810025413323
Core Alignment Splicer
FSP200-KIT1
55500053
810025413330
Splicer & Cleaver Kit (FSP200 & FCL200)
FSP200-KIT2
55500054
810025413347
Contractor's Kit (FSP200, FCL200, PA1171 & Extra Battery)
Attribute Name Attribute Value
Applicable Fibers SM (G.652); MM (G.651); DS (G.653); NZDS (G.655); BIF (G.657); EDF
Fiber Cleaved Length 10mm
Cladding Diameter 100 to 1000µm
Fiber Count Single
Fiber Aligning Method Core Alignment
Splice Loss (Typical) 0.02 dB (SM); 0.01 dB (MM); 0.04 dB (DS); 0.04 dB (NZDS & BIF)
Splicing Mode 60 Preset / User Definable Modes
Splice Time 7 seconds
Boot Time 5 seconds
Number of Splices Per Battery Charge 200 (including 60mm heat shrink cycle)
Splice Connector SC, LC, FC, ST
Arc Calibration Mode Automatic & Manual
Protection Sleeve Length 60mm, 40mm, Micro Sleeves
Ingress Protection IP5X (Dust); IPX2 (Water)
Storage of Splice Results 5,000 Results, 100 screenshots
Drop Test 76cm on five axis
Tension Test 2N
Fiber Display Magnification 200x
Tube Heating Time 18 seconds
Attenuator Mode 0.1 to 15 dB
Electrode Life 5,000 Splices
Display 5" Color LCD Touchscreen
Connectivity USB
Storage Temperature -40 to +158F (-40 to +70C)
Operating Conditions Pressure: 0 to 16,404 feet (0 to 5,000 meters) above Sea Level Humidity: 0 to 95% Temperature: -4 to +131F (-20 to +55C)
Power Supply 100 to 240V AC Adapter; Li-ion Battery (4400 mAh)
Weight 3.74lbs (1.7kg) with battery
Dimensions 4.9” x 4.9” x 5.3” (125 x 125 x 135mm)
Vibration Resistance 10Hz – 500Hz with a spectral density of 0.03 g2/Hz
Password Protection Yes
