EMI fiberTOOLS

Catalog Number: 560XL-EMI

Title	Description
560XL-EMI	Optical Power Meter
570XL-AS100-EMI	LED Source
580XL-EMI	Dual Laser Source

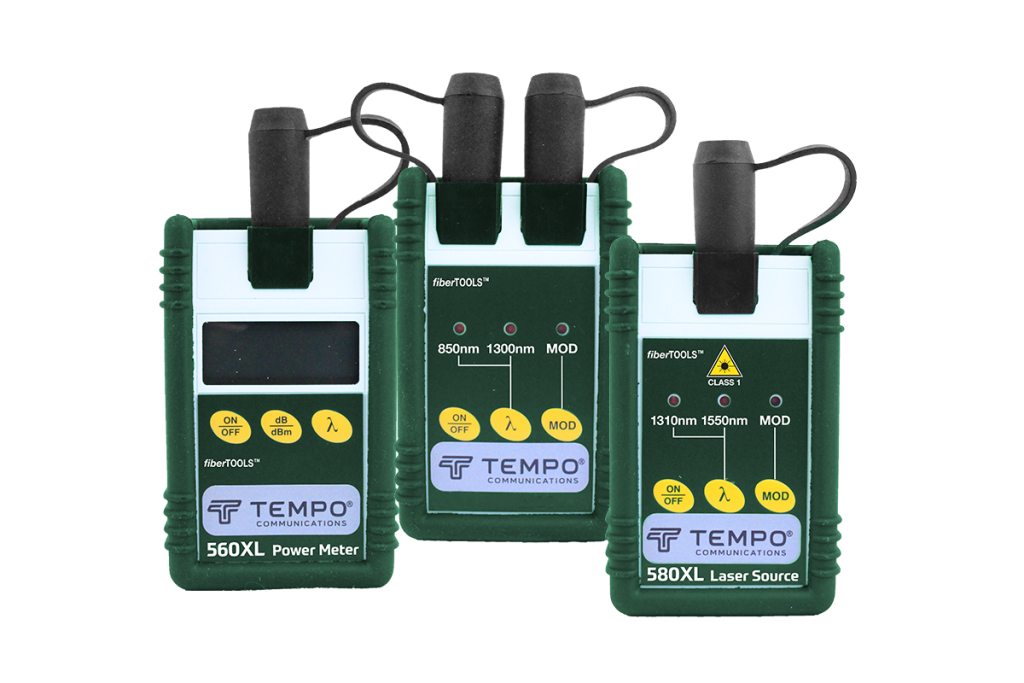

The EMI fiberTOOLS consist of the 560XL-EMI (Optical Power Meter), 570XL-EMI (LED Source), and 580XL-EMI (Dual Laser Source). The optical and mechanical performance is equivalent to the non-EMI versions and can be used to measure absolute optical power and perform loss testing on singlemode and multimode fiber links. The EMI designation allows the capability of performing these measurements in harsh EMI conditions to MIL-STD-461E. The 570XL-AS100-EMI meets the stringent AS-100 launch condition.

To purchase contact government@tempocom.com or call (760) 510-0563.

Easy To Use - Three ButtonsControl All Functions
Loss Measurements In (dB)
Power Measurements In (dBm)
0.01Db Measurement Resolution
Multi-Wavelength Storage - Store And Recall Reference Power Levels For Faster, More Efficient Measurements
Snap-On Connector Interface Adapts To FC, SC, and ST Connectors
Long Battery Life
User Selectable Auto Shut-Off
Rugged And Splash-Proof
Economically Priced
EMI Shielded

Snap-On Connector Interface Adapts To FC, SC, and ST Connectors for 560XL-EMI; customer to select and order for each instrument.

Universal Connector Interface Adapts TO FC, SC and ST Connectors for 570XL-AS100-EMI and 580XL-EMI; customer to select and order for each instrument

580XL EMI ENG

570XL AS100 EMI

TC5913 560 XL EMI 3 25

TC5910 580XL EMI FR

XL Fiber Tools Manual

XL fiber TOOLS Declaration of Conformity

Attribute Name	Attribute Value
Accuracy	+/- 0.25 dB
Calibrated Wavelengths	850, 1300, 1310, 1550 nm
Connector interface	FC, SC or ST SOC Adapter
Dimensions	2.8
Humidity	0 to 95% Non-Condensing
Linearity	+3 dBm to -3 dBm: +/- 0.5 dB, -3 dBm to -50 dBm: +/- 0.05 dB, -50 dBm to -60 dBm: +/- 0.5dB
Power Range	+3 to -60 dBm
Power Requirement	Two AA Size 1.5 V Batteries (Approximate 100 Hour Continuous Operation)
Resolution	0.01 db
Standard	EN61010; EN50081-1: 1992; EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3,-4
Storage/Operating Temperature	-15 to 55℃ / -35 to 70℃
Type	EMI Shielding
Weight	8.5 oz (241 g)
Country of Origin	USA
