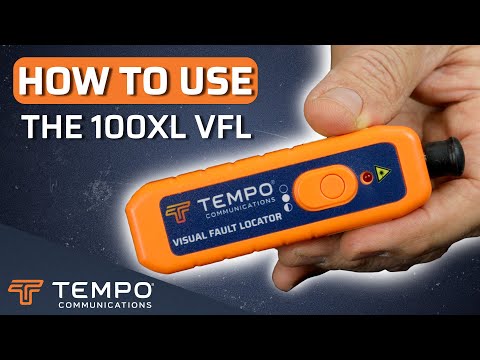

100XL Visual Fault Locator

Catalog Number: 100XL-C/A
$51.99

The 100XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The 4km reach of the 100XL allows the technician to confirm fiber continuity

  • Visual fault locating
  • Confirm fiber continuity
  • Allows the technician to quickly locate faults without the use of more expensive equipment
  • Class 2 designation, 1mW maximum output power
  • 4km distance
  • Universal 2.5mm bulkhead
  • Optional 1.25mm adapter available
  • Compatible with Singlemode and Multimode fibers
  • 2Hz modulation mode
Document Icon Tempo 500 XL_100XL VFL Data Sheet
Document Icon Do C 500 XL 100 XL
Document Icon 500 XL and 100 XL Application Note
Document Icon Visual Fault Locator Safety
Attribute name Attribute Value
Maximum Output Power1MW
Laser ClassificationClass 2
Maximum Range4km
Wavelength650nm +/-10nm
Emitter TypeFabry Perot
Modes of OperationCW and 2Hz Modulation
Method of Display OperationRed/Green LED
Fiber TypeSinglemode, Multimode
Connector Interface2.5mm Universal, Optional 1.25mm adapter
Battery Life20 hours AAA batteries
Weight3.5oz (100g) (not including batteries)
Dimensions4.3 x 1.1 x 0.67” (110 x 28 x 17mm)
Operating Temperature-10°C to +50°C
Storage Temperature-40°C to +70°C
