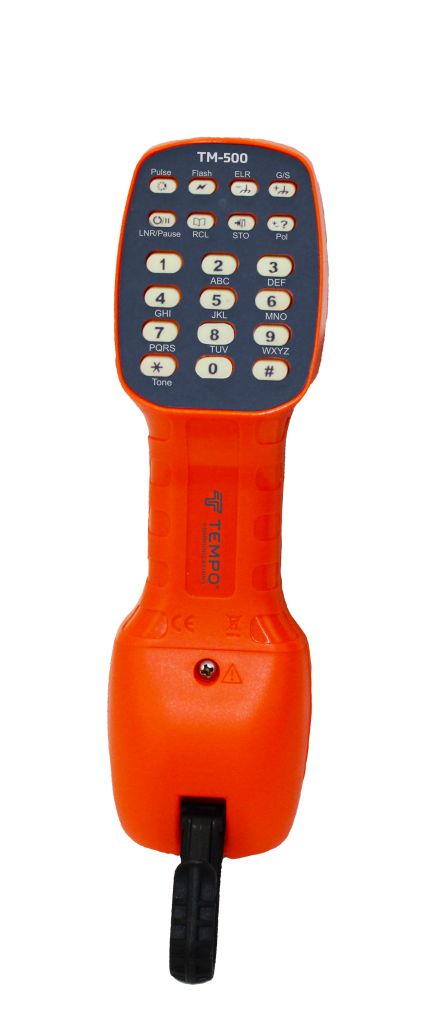

TM-500 Tele-Mate Telephone Test Set

Cat No: TM-500

Legacy UPC No: 783310004868

Tempo UPC No: 810025412791

In the evolving world of telecommunications, the TEMPO Tele-Mate® Telephone Test Set is an easy to use, DSL Compatible Telephone Test Set designed to help technicians install, service and maintain voice service with ease. Able to tackle the complexities of today’s analogue tele-communication lines, the TM-500 offers the convenience of line powered (no battery needed) operation and useful features like a high impedance monitor that is data and DSL safe, polarity test, speed dial, last number dialed and pulse dialing, making a technician more productive.

The TM-500 not only works in handset mode, but can be used with the headset (included) for easy hands-free operation. The TM-500 is safe to operate with over-voltage and current detection.

TM-500 Tele-Mate Telephone Test Set
  • Can be used safely on a DSL enabled line
  • High Impedance monitor for monitoring line without disrupting existing traffic
  • Tone and pulse dialing for versatility on old and new phone lines
  • Luminescent (glow-in-the-dark) keypad
  • Can be used safely on a DSL enabled line
  • High Impedance Monitor for monitoring line without disrupting existing traffic
  • Over voltage and over current protection
  • Tone and Pulse dialing for versatility on old and new phone lines
  • Polarity test with LED indicator
  • 32 digit last number redial and pause
  • 10 number speed dial
  • Adjustable volume control plus mute
  • Pause
  • Flash to generate a timed break recall
  • Line powered, no battery needed
  • Headset (included) for hands free operation
  • RJ11 socket
Catalog No.UPC No.Description
TM-500
00496
Test Set with ABN Bed of Nails Croc Clips
TM-500T
00494
Test Set with ABN Bed of Nails Croc Clips  (Boxed)
TM-500i
00643
Test Set with small Croc Clips (Boxed)
Attribute Name Attribute Value
Application For Convenience of Line Powered (No Battery Needed) Operation And Useful Features Like A High Impedance Monitor That Is Data And DSL Safe, Polarity Test, Speed Dial, Last Number Dialed And Pulse Dialing
Dimensions 9.25 (235 MM) Length X 2.5 (64 MM) Width X 3.25 (83 MM) Height
Includes "ABN" "Bed-Of-Nails" Crocodile Clips
Replacement Part PE810, PA1780
Sub Brand Tele-Mate
