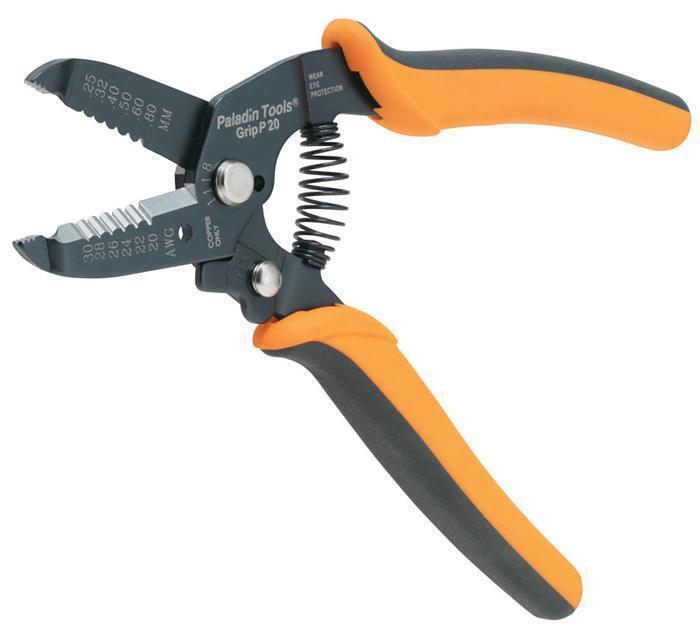

PA1118 WIRE STRIPPER 30-20 AWG
Cat No: PA1118
UPC No: 769328111736
- Head of tool and handles designed at optimum 22º angle to prevent awkward wrist bends
- Spring-loaded open
- Contoured wire stripping areas precision ground for accuracy
- Non-scoring strip and smooth wire cutting
- Features screw cutter and wire loops embedded in frames
- Built-in safety lock
- Gripping jaws on front of tool
- PA1118 will work on Romex household cable
- Not for use on steel or armored wire and cable
- Limited Lifetime Warranty
Documents
| Title |
|---|
| PA1118 Datasheet |
Specifications
| Attribute Name | Attribute Value |
|---|---|
| Application | Strips 30-20 AWG Wire And Cable |
| Depth | 0.650 IN (17.000 MM) |
| Jaw Type | Gripping |
| Overall Length | 7.100 IN (180.000 MM) |
| Stripping Range | 30 - 20 AWG (0.050 - 0.500 SQ-MM) |
| Type | GripP 20 |
| Weight | 6.500 OZ (185.000 GM) |
| Width | 2.250 IN (57.000 MM) |
| Item Status Date | 04302010 |
| Country of Origin | TW |
| UNSPSC | 43223312 |
| International Harmonize Code | 8203206060 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
