Cat No: SM11
Coming Soon!
Electronic markers are one of the smartest, most cost-effective ways to protect underground assets. They ensure contractors can quickly and accurately locate utilities, fittings, and splices—while helping avoid costly mistakes, downtime, and rework.

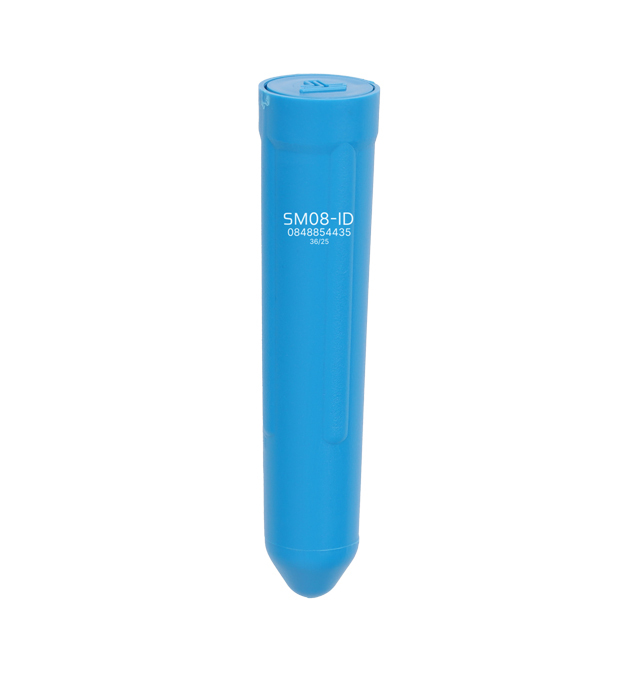

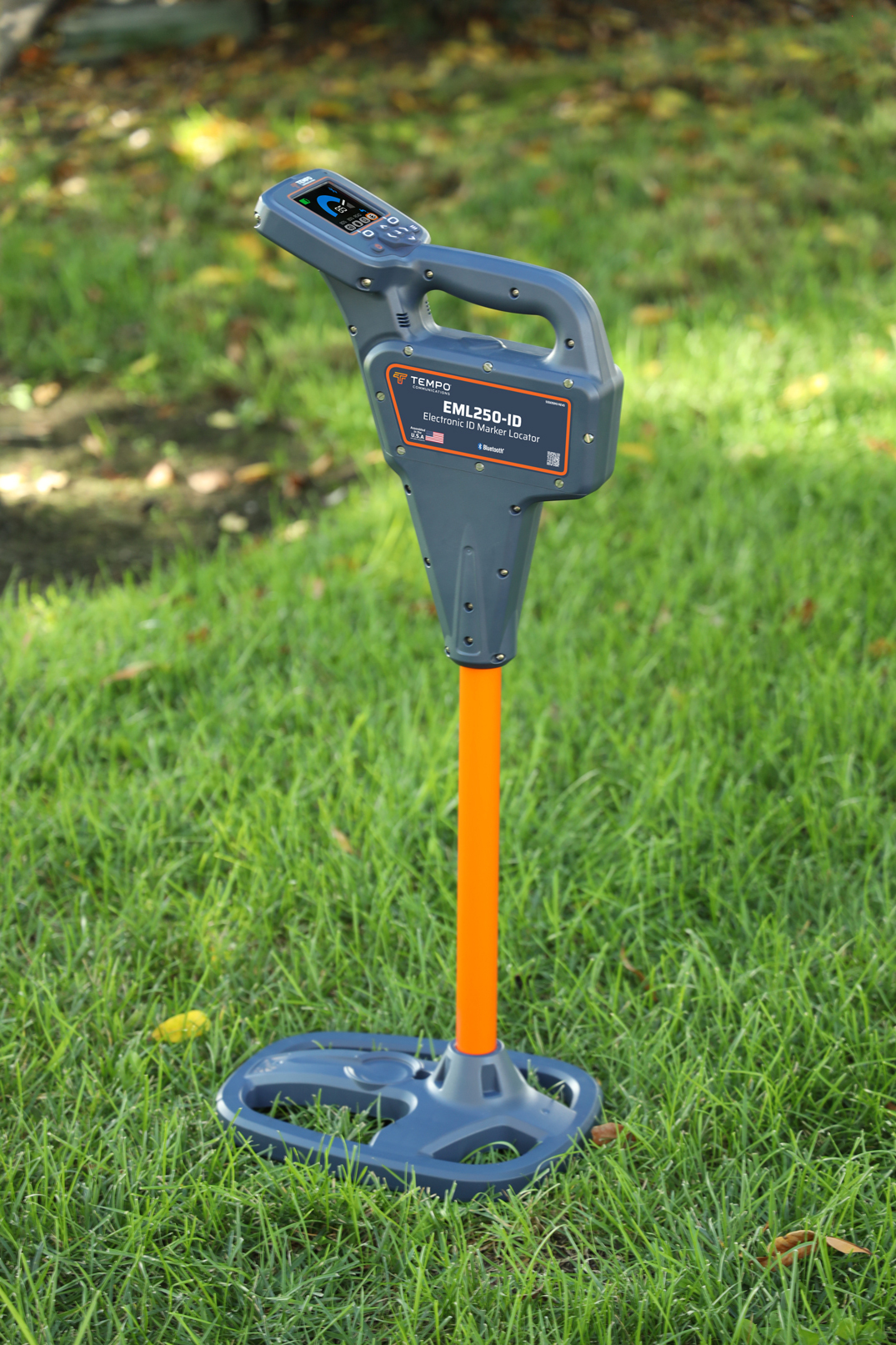

The Spike Marker-ID™ is a compact, intelligent electronic marker designed to protect underground utilities with speed and accuracy. Unlike traditional markers, the Spike Marker-ID stores a unique serial number plus custom data, instantly retrievable at depths up to 3.3 ft. (1 meter) with a marker locator such as Tempo’s EML250-ID, and easily integrated into GIS systems.
Built for compact spaces and engineered with an environmentally friendly, maintenance-free design, the Spike Marker-ID is compatible with any industry-standard marker locator.
Key Benefits:
Compact design for tight spaces and dense utility corridors
Maintenance-free, environmentally friendly construction
Compatible with all industry-standard marker locators
Detectable at depths of up to 3.3 feet (1 meter)
Unique serial number for reliable identification
Read/write functionality for custom data storage and retrieval
Seamless GIS integration for smarter asset management
The Spike Marker-ID™ is more than a marker—it’s a data point in your infrastructure network, safeguarding critical assets today and supporting smarter asset management for tomorrow.
Related Products
Increase the safety and efficiency of your technicians with electronically marked utilities. Spike Markers make it easier to accurately locate, particularly “non-conductive” and “non-ferrous” cables, pipes, and ducts. They are also ideal for marking key points in networks such as tees, valves, overgrown junction boxes, and more.
CAT NO | ITEM NO | UPC | Description | IMAGE |
---|---|---|---|---|
SM11
|
55505034
|
810025413583
|
SPIKE MARKER PURPLE 66KHZ (GENERAL PURPOSE/NON-POTABLE WATER)
| |
SM12
|
55505035
|
810025413958
|
SPIKE MARKER ORANGE/BLACK 77KHZ (CATV)
| |
SM13
|
55505036
|
810025414474
|
SPIKE MARKER YELLOW 83KHZ (GAS)
| |
SM14
|
55505037
|
810025416430
|
SPIKE MARKER YELLOW/BLACK 92 KHZ (OPTICAL FIBRE)
| |
SM15
|
55505038
|
810025416447
|
SPIKE MARKER ORANGE 101.4 KHZ (TELEPHONE)
| |
SM16
|
55505039
|
810025416478
|
SPIKE MARKER GREEN 121 KHZ (WASTE WATER/SANITARY)
| |
SM17
|
55505040
|
810025416928
|
SPIKE MARKER BLUE/RED 134 KHZ (EUROPOWER)
| |
SM18
|
55505041
|
810025417154
|
SPIKE MARKER BLUE 145 KHZ (WATER)
| |
SM19
|
55505042
|
810025416966
|
SPIKE MARKER RED 169 KHZ (POWER)
| |
SM24
|
55505043
|
810025417062
|
SPIKE MARKER 7MM CAP YELLOW/BLACK 92KHZ (OPTICAL FIBRE)
| |
SM25
|
55505044
|
810025416959
|
SPIKE MARKER 7MM CAP ORANGE 101.4 KHZ (TELEPHONE)
| |
SMAD1
|
55505047
|
810025417331
|
SPIKE MARKER 7MM & 10MM SOFT DUCT ADAPTOR
| |
SMFIX
|
55505046
|
810025417352
|
SPIKE MARKER FIXING KIT (HOLDER AND CABLE TIE)
|
Attribute Name | Attribute Value |
---|---|
Materials: | Enclosure HDPE fully sealed. RoH5 and REACH compliant. |
Length: | 89mm (standard), 106mm (coupler option) |
Maximum diameter: | 19.8mm |
Application: | For electronically marking key locations in buried utility |
Weight: | One Marker .07lb (.03kg) |
Unit of Supply: | One box contains 50 markers |
Country of Origin | |
Vertical Read Range | 3.3ft (1 m) |
Horizontal Read Range | 2ft (0.61 m) |
