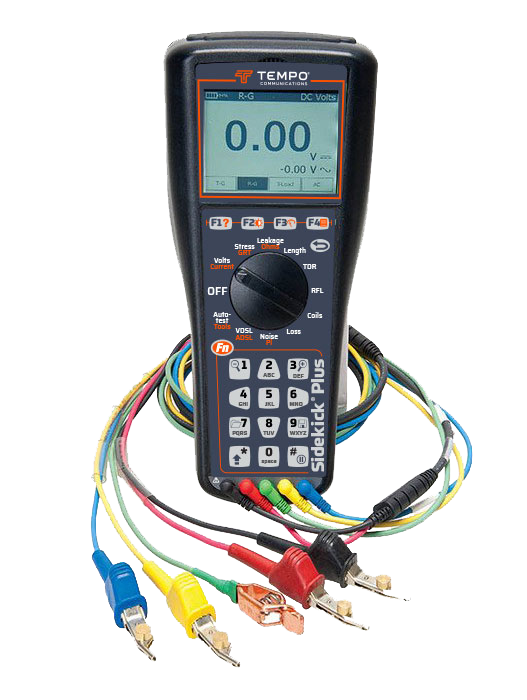

Sidekick Plus – Copper and DSL Test Set

$4,306.79

For decades, the Sidekick® Test Set name has been trusted by telecommunications technicians as one of the industry’s most dependable field testing platforms. From central offices to customer premises, Sidekick test sets became a staple in the hands of technicians responsible for keeping copper networks running reliably across North America and beyond.

In fact, the original Sidekick earned such industry significance that it was once displayed at the Smithsonian Institution, recognized as a milestone innovation in telecommunications field-testing. That legacy continues today with the Sidekick® Plus Standard Copper and DSL Test Set, delivering the rugged reliability and practical functionality technicians have relied on for generations.

Designed to help technicians quickly diagnose, troubleshoot, qualify, and maintain twisted-pair copper, the Sidekick® Plus combines advanced copper testing with service testing in a single, easy-to-use platform. Whether installing new services or resolving complex line issues, the Sidekick® Plus helps crews work faster, smarter, and with greater confidence in the field.

  • Saves time. An intuitive mode selection dial and straightforward operation minimize training requirements and allow technicians to move efficiently between tests. Fast access to critical diagnostics means less time troubleshooting and more time closing jobs.
  • Versatile Testing in One Platform. The Sidekick® Plus combines comprehensive copper qualification with service testing in a single handheld test set. Technicians can validate line quality, identify impairments, and service performance without switching between multiple tools.
  • Fully loaded. Everything needed to test and troubleshoot the copper infrastructure supporting is included right out of the box. The Sidekick® Plus is engineered to support installation, qualification, maintenance, and repair workflows across legacy and evolving networks.
  • Advanced Diagnostics Without Additional Modules. No add-ons or external modules required. The Sidekick® Plus delivers powerful cable diagnosis and troubleshooting capabilities in one integrated test set, helping technicians isolate faults quickly and accurately while reducing equipment complexity in the field.
  • A Legacy of Trust. For generations of technicians, the Sidekick® name has represented reliability, durability, and confidence on the job. The Sidekick® Plus continues that tradition bringing together the heritage of a telecom icon with the modern testing capabilities needed to support today’s copper networks.

Patented – Patent #6263047, 6621562, 7710122, 8232807, 8237459, 2710639, 2282499, 8564302

Standard Features:

  • Advanced Dual Trace Pulse TDR (Zero Dead Zone)
  • Resistive Fault Locator (Detects up to 20MΩ)
  • 1GΩ Leakage Test (Insulation Resistance)
  • Longitudinal Balance Test
  • Ground Resistance Test
  • Quite Line Noise (QLN) Test
  • Stress Test
  • AC/DC Voltage
  • Resistance
  • Open Meter
  • Loop Current
  • Circuit Loss
  • Tracing Tone Generator
  • Reference Tone

Bonded Modem with XDSL:

  • Pair bonding
  • ADSL+/VDSL2+
  • Vectoring
  • Broadcom BCM63168
  • Automated test scripts
  • USB export/import of test results/profiles
  • 35MHz Wideband Noise Spectrum Analysis
  • 4.4MHz Loss Measurement Test
  • 35MHz Impulse Noise Step TDR with auto bridgetap detection (zero dead time)

ADSL/VDSL Modem Sync and Service Tests:

  • DSL Showtime
  • Bits per Tone graph
  • Signal-to-noise Ratio Graph
  • HLOG Graph
  • Error Counter
  • Upper Layer Testing: Ping, Trace-route, HTTP, FTP

preview

Sidekick Plus — Specifications (Standard / Advanced / Wideband)


STANDARDADVANCEDWIDEBAND

STANDARD
1155-5001 and 1155-5003
ADVANCED
1155-5005
WIDEBAND
1155-5009
Basic Telco Testing
AC Voltage250Vrms250Vrms250Vrms
DC Voltage300VDC300VDC300VDC
AC & DC Current110mA110mA110mA
Stress82dBrnC82dBrnC82dBrnC
Earth / Ground Resistance Test250Ω250Ω250Ω
Longitudinal Balance+100dB to +20dB+100dB to +20dB+100dB to +20dB
Resistance100MΩ100MΩ100MΩ
Leakage / Insulation999MΩ999MΩ999MΩ
Capacitance / Length>100km>100km>100km
Pulse TDR10km10km10km
RFL>60kmUpgradeable Kit>60km
Load Coil Detect555
DSL Testing
DSL Showtime with graphs (Bits per tone, SNR etc)


Transport Layer (PPPoE, Bridged Mode etc)


IP Layer tests (Ping, HTTP & FTP etc)


Pair Bonding


Vectoring
Vectoring


Step TDR
Step TDR
500m500m
Impulse Noise
C Filter
+5 to -60dBm+5 to -60dBm
E, F, G, V9, V17 & V35 Filters
+5 to -60dBm+5 to -60dBm
Filter Frequencies
C Filter3kHz
E Filter50kHz
F Filter245kHz
G Filter1.1MHz
V9 Filter8.8MHz
V17 Filter17.7MHz
V35 Filter35MHz
Loss (SLM)
4kHz 600Ω-70dBm-70dBm-70dBm
8.8MHz 75Ω, 100Ω, 135Ω

-50dBm
Noise
C Filter0 to -90dBrnC0 to -90dBrnC0 to -90dBrnC
E, F, G, V9, V17 & V35 Filters

0 to -70dBm
Power Influence
C Filter+110 to 30dBrnC+110 to 30dBrnC+110 to 30dBrnC
G Filter

+20 to -60dBm
Balance
Balance+20 to 90dB+20 to 90dB+20 to 90dB
Noise Spectrum Analyzer
C Filter+90 to 0dBrnC+90 to 0dBrnC+90 to 0dBrnC
E, F, G, V9, V17 & V35 Filters

0 to -90dBm
Power Influence Spectrum Analyzer
C Filter+110 to 30dBrnC+110 to 30dBrnC+110 to 30dBrnC
G Filter

+20 to -60dBm
Tone Generator
Simplex500Hz-3500Hz500Hz-3500Hz500Hz-3500Hz
Metallic500Hz-3500Hz500Hz-3500Hz500Hz-3500Hz
Voiceband: 600Ω200Hz-20kHz200Hz-20kHz200Hz-20kHz
Wideband: 75Ω, 100Ω, 135Ω

20kHz-4.4MHz
Auto Test
Pass/Fail✓✓✓
Specific test scripts✓✓✓
