Catalog Number: PA1171
  • Precision ground stripping cavities for: 2.0 - 2.4 mm outer jacket, 2.0 - 3.0 mm loose tube, 2.8 - 3.0 mm outer jacket, 900 μm buffer insulation, 900/125 μm and 250/125 μm buffer/acrylate
  • Factory calibrated
  • Dual-durometer grips for improved comfort and control
  • Head of tool and handles designed at optimum 22" angle to prevent awkward wrist bends
  • Precision grould blades ensure consistent stripping and cutting
  • Features screw cutter and wire loops embedded in frames
  • Built-in safety lock
  • Gripping jaws on front of tool for pulling wire
  • Works on Romex household cable
  • NOTE: this tool is not insulated
Document Icon PA1171 Datasheet
Document Icon PA1171 Instructions
Document Icon TC6435 Fiber Optic Hand Tools Brochure
Attribute name Attribute Value
ApplicationFor Stripping Fiber Optic Cables
Handle TypeDual-Durometer
Stripping Range2.000 - 2.400 mm Outer Jacket, 2.000 - 3.000 mmLoose Tube, 2.800 - 3.000 mm Outer Jacket, 900.000 μm Buffer Insulation, 900.000/125.000 μm And 250.000/125.000 μm Buffer/Acrylate
Sub BrandProGrip
Type5 in 1 Fiber Optic
Item Status Date07062010
Country of OriginTW

Related Products

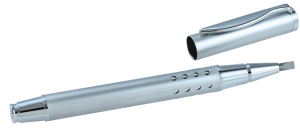

PA1922-1 FIBER OPTIC CARBIDE
