Optical Power Meter (OPM)

Cat No: OPM510/OPM520

Count on Tempo Communications Optical Power Meters (OPM510/520) to test and maintain your fiber optic networks.

Use to accurately ensure that signals are being transmitted at the correct power levels in your fiber network. The OPM 510 and 520 are available in standard and high-power versions for the Telco and MSO markets.

The optical power meter can measure both the absolute power level and the relative power level of light in the fiber. Absolute and referenced power measurements ensure fast and accurate loss budget and insertion loss measurements. Absolute power measurements are used to ensure that the system is operating within a specified power range, while referenced, or relative, power measurements are used to detect changes in the power level caused by various factors such as attenuation, dispersion, and reflection.

When placing tones on the fiber using a Tempo Communications source, the optical power meter will definitively identify fiber optic cables. The rugged, IP54-compliant package provides confidence when testing singlemode and multimode networks. See Models tab for options and available OPM Adapter.

Optical Power Meter (OPM)Optical Power Meter (OPM)Optical Power Meter (OPM)Optical Power Meter (OPM)Optical Power Meter (OPM)

• Standard and High Power Optical Power Meters

• Measure Optical Power Level of Light in Fiber Optics

• Accurate Insertion Loss Measurements

• Tone and Probe Fiber Networks at 270Hz, 1kHz and 2kHz

• Absolute or Referenced Optical Power Measurements

• InGaAs detector for Maximum Sensitivity

• Calibrated Wavelengths 850nm, 1300nm, 1310nm, 1490nm, 1550nm & 1625nm

• SC, LC, FC and ST Interchangeable Bulkheads

• Ruggedized Package, IP54 compliant

• Compatible with Singlemode and Multimode Fiber Networks

• Auto Off or Continuous On Operation

• Battery or 120/240VAC Operation

ModelMeasurement Range
OPM510 (UPC: 810025413064)
Optical Power Meter (-65 to +10dBm)
OPM520 (UPC: 810025413071)
Optical Power Meter (-50 to +27dBm)
Adapters & Accessories
LC OPM Adapter
SC OPM Adapter
ST OPM Adapter
FC OPM Adapter
SC/APC Adapter

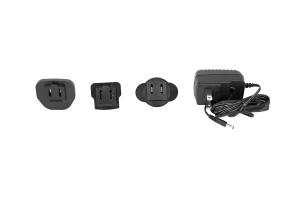

External Power Supply
Single Instrument Case
Dual & Triple Instrument Case
Attribute Name Attribute Value
Attribute Name Attribute Value
Calibrated Wavelengths 850, 1300, 1310, 1490, 1550, 1625
Measuring Range OPM510: -65 ~ +10; OPM520: -50 ~ +27
Detector Type InGaAs
Accuracy OPM510: ±0.25dB (±0.5dB@850nm); OPM520: ±0.25dB (±0.5dB@850nm)
Linearity OPM510: +/-0.5dB (+10 to -3dBm) +/-0.1dB (-3 to -50dBm) +/-0.5dB (-50 to -65dBm); OPM520: +/-0.5dB +27 to -3dBm +/-0.1dB -3 to -50dBm
Resolution 0.01dB
Functions µW/dBm/dB(REF)/ MOD TONE DETECT 270Hz, 1kHz, 2kHz
Connector Type SC/PC (Interchangeable LC, ST, SC)
Fiber Type Singlemode & Multimode
Battery Life > 100 Hours
Power Supply 9V Alkaline or 1000mAh Lithium Battery/ 9V AC adapter
Operating Temperature -10ºC ~ 50ºC
Storage Temperature -20ºC ~70ºC
Relative Humidity 0 TO 95% (NON-CONDENSING)
Weight 0.68lbs (300g)
Dimensions 6.1 × 3.5 × 1.3” (155 × 88 × 33mm)
IP Rating IP54
Vibration 5Hz to 150Hz, Amplitude+0.15mm
Shock Peak acceleration 25g at a pulse duration of 6ms
Compliance CE, FCC
