MM200 Multimeter

Catalog Number: MM200
$165.78

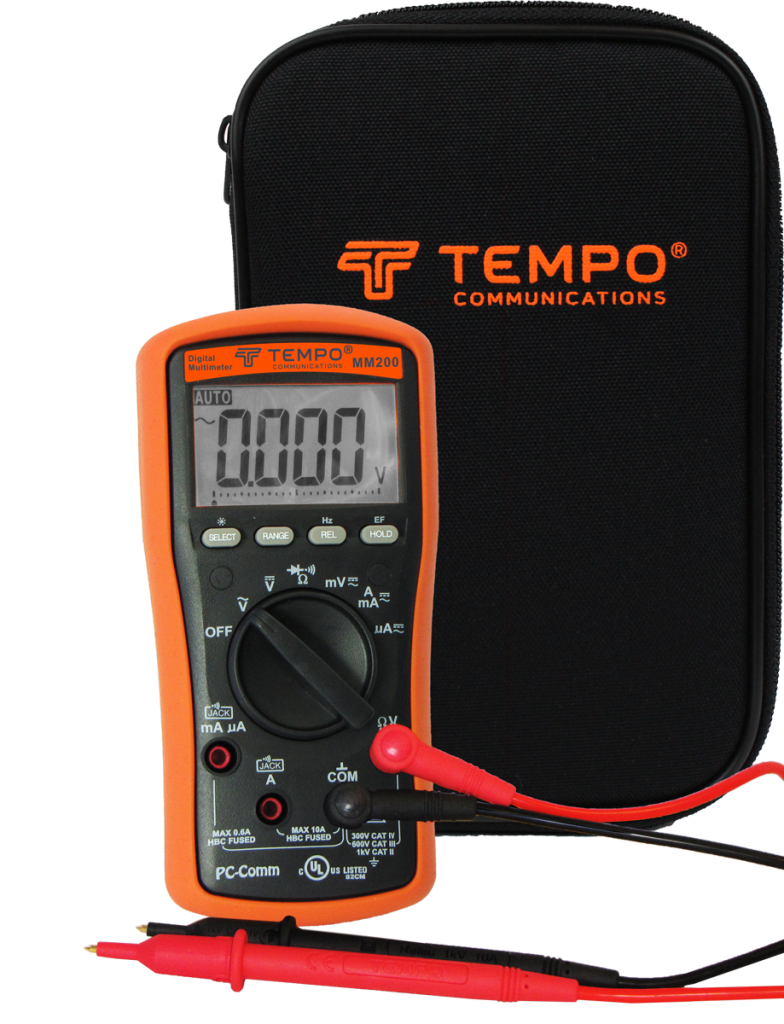

Equipped with all the measurement features you’re likely to need, the MM200 from Tempo Communications is an accurate, 6000 count, segmented, bar-graph, auto-ranging multimeter that will suit most electricians’ needs.

Built to international safety standards, the MM200 performs all the tests any electrician would want from a multimeter. Features like “BeepJack” help prevent damage when leads are attached to the wrong terminals for the type of test selected. Fully auto-ranging or manual—the choice is yours. The backlit LCD helps when testing in those awkward cupboards.

  • Volts
  • ohms
  • Current
  • Frequency
  • Continuity
  • Diode
  • Non-contact electric field detection plus relative measurements
  • Display backlight
  • Reading hold
  • CAT-IV 300V, CAT-III 600V
  • Supplied with silicone insulated safety leads with removable CAT-IV arc-flashguards
  • Supplied with a custom-built fabric carry case

MM200 Multimeter: Testing| Troubleshooting| Accuracy

Supplied with a zipper case and high-quality safety test leads:

Product Features:

  1. Fast response 24 segment “bar-graph”
  2. 6000 Count large digit LCD
  3. Core accuracy better than 0.5%
  4. Average responding AC measurements
  5. Measurements Voltage (ac or dc)Current (ac or dc)Continuity Resistance Diode Frequency Electric Field (EF) voltage detector
Document Icon TC MM200 Datasheet
Document Icon MM200 A Instruction Manual
Attribute name Attribute Value
DisplayLCD (6000) and 24-segment bar graph
PolarityAutomatic
Sampling RateNumeric Display: 5 per second Bar Graph Display: 40 per second
Temperature CoefficientNominal 0.15 x (specified accuracy) per °C below 18 °C or above 28 °C
Automatic Shut-OffAfter 34 minutes of inactivity
Noise RejectionNormal Mode Rejection Ratio > 60 dB at 50 Hz and 60 Hz when measuring DCV Common Mode Rejection Ratio > 60 dB from 0 Hz to 60 Hz when measuring ACV Common Mode Rejection Ratio > 100 dB at 0 Hz, 50 Hz and 60 Hz when measuring DCV
Operating Conditions0 °C to 40 °C (32 °F to 104 °F)
Relative Humidity80% maximum for temperatures up to 31 °C (88 °F), decreasing linearly to 50% maximum at 40 °C (104 °F)
Altitude2000 m (6500’) maximum
Pollution Degree2
Storage Temperature–20 °C to 60 °C (–4 °F to 140 °F)
BatteryTwo 1.5 V batteries (AAA, NEDA 24A or IEC LR03)
Volts & AutoCheck1100 V DC/AC rms
mV, O, and Others:1000 V DC/AC rms
µA and mA:0.4A/1000V DC/AC rms, IR 30kA @ 1000V DC/AC rms; Dimension: 6 x 32 mm
A:11A/1000V DC/AC rms, IR 20kA @ 1000V DC/AC rms; Dimension: 10 x 38 mm
V/ohms/mA/A to COM:CAT III 600V and CAT IV 300V AC & DC
E.M.C.Meets EN61326-1:2013
