EML250-ID

Cat No: EML250-ID

Coming Soon! Precision RFID Locating with Built-In Intelligence

The EML250-ID Electronic RFID Marker Locator is engineered for professionals who need accurate, detailed underground utility data—quickly and reliably. The internal read/write capability allows the EML250-ID to read unique serial numbers and read and write custom information from Tempo’s OmniMarker-ID at distances up to 5 feet and from Spike Marker-ID up to 3.3 feet, all across 9 industry-standard frequencies.

In addition to identifying RFID-enabled markers, the EML250-ID passively locates any standard marker ball, offering full compatibility across utility types and applications.

Read and write actions are automatically recorded, ensuring clear data traceability. Integration is seamless with the Locator Link Mobile App, which allows for fast file transfer to GIS systems or cloud-based storage. For even greater positional accuracy, the EML250-ID pairs with external GNSS devices to precisely map each marker’s location.

A high-visibility color LCD provides a clear interface in varying field conditions, and the IP54-rated housing offers dependable protection against dust and water. The unit is fully rechargeable, reducing downtime and eliminating the need for disposable batteries.

Built for durability and designed for efficient data handling, the EML250-ID is a smart addition to any utility locating toolkit.

  • Reads unique serial number and custom data on markers in all 9 frequencies
  • Passively locate markers in all 9 frequencies
  • Connects to mobile app for seamless GIS uploads
  • Connects to external GNSS devices

EML250-IDEML250-IDEML250-IDEML250-IDEML250-ID

Product Features

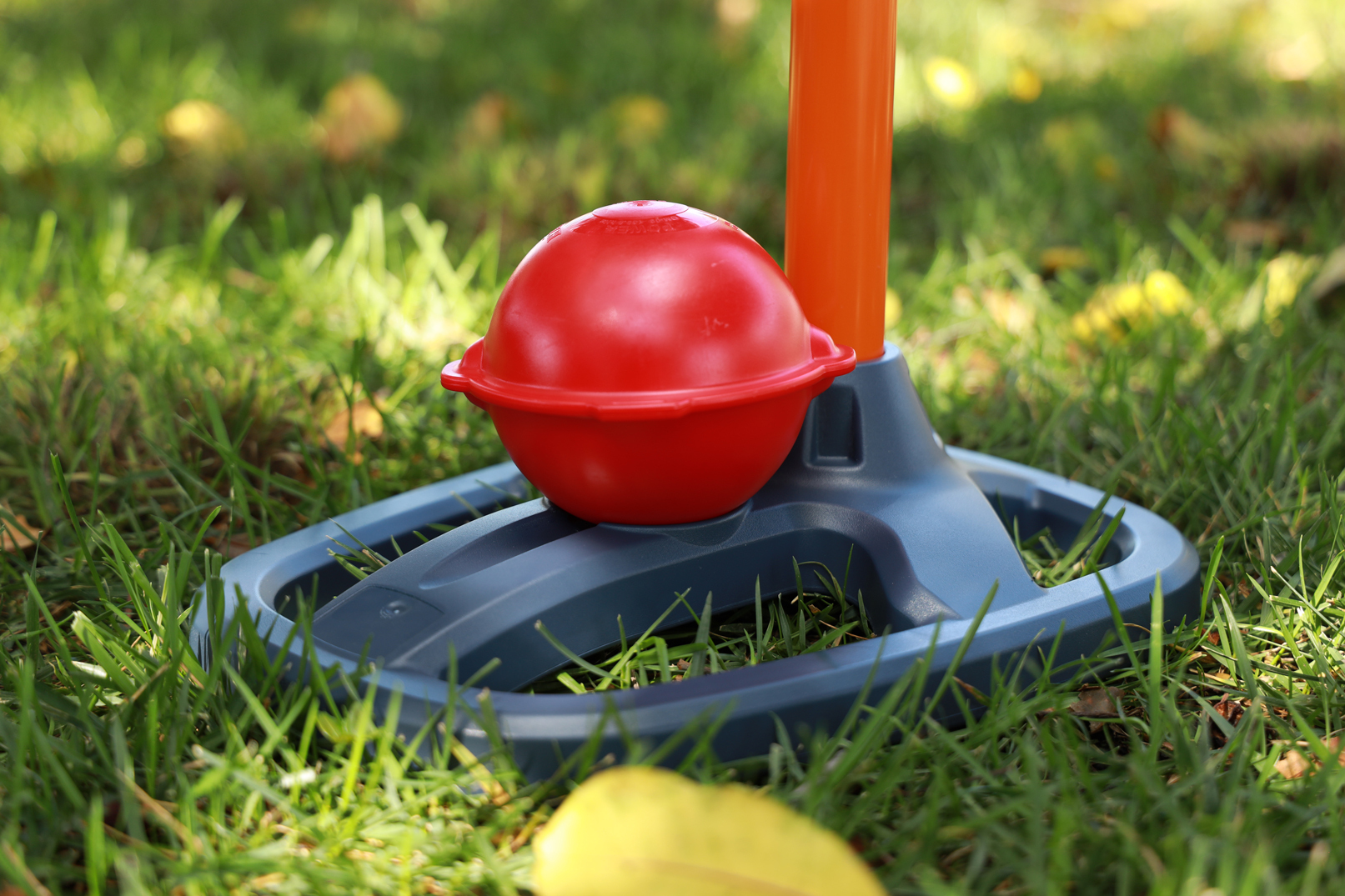

  • Reads unique serial number and custom-written information on ID Omni Markers from up to 5ft away in 9 industry-standard frequencies

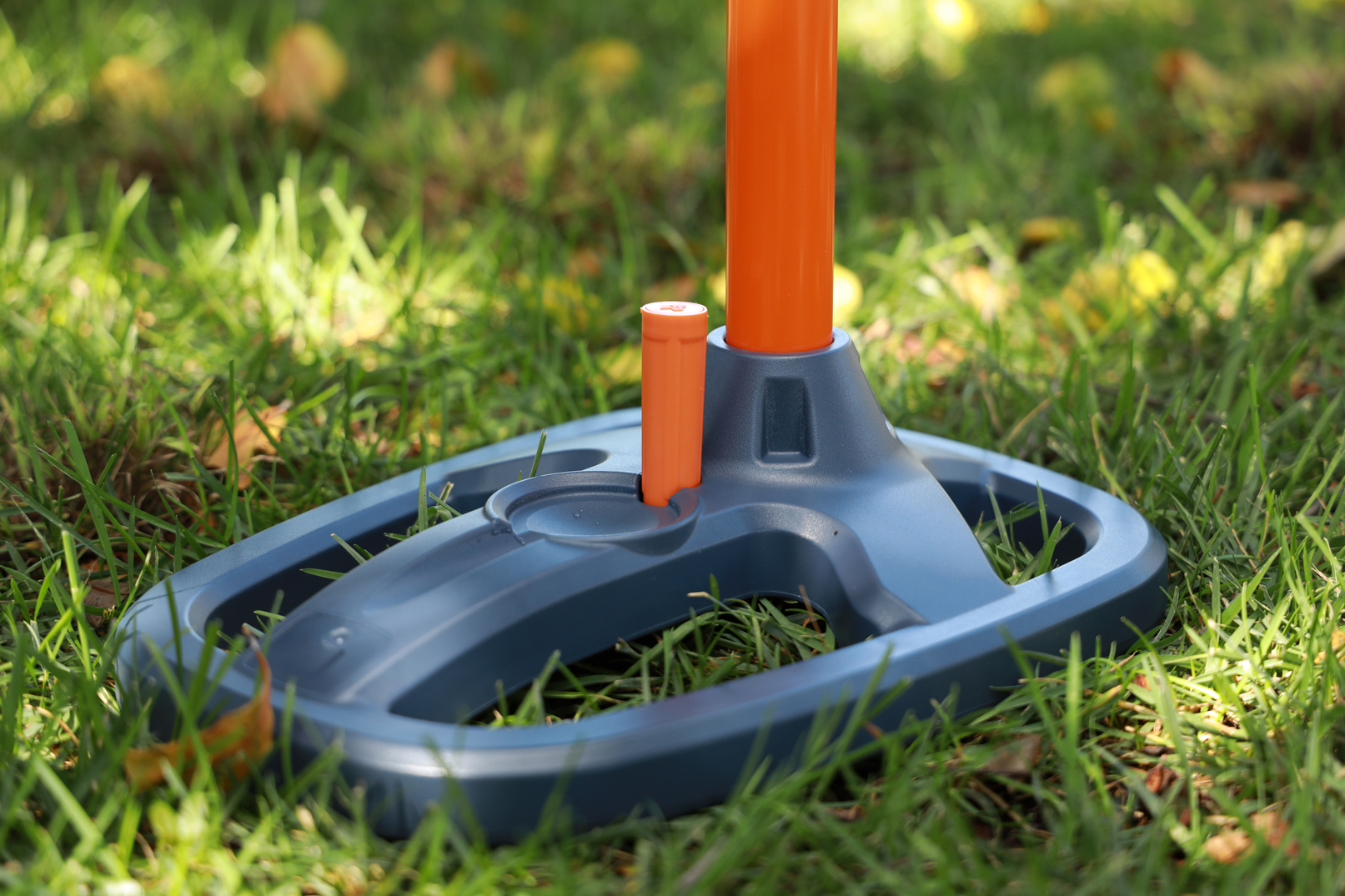

  • Reads unique serial number and custom-written information on ID Spike Markers from up to 3.3 ft away in 9 industry-standard frequencies
  • Locates any industry standard marker ball passively
  • Read and write logs are recorded
  • Compatible with Locator Link Mobile app to easily transfer files to GIS system or the cloud
  • Compatible with External GNSS devices to pinpoint location

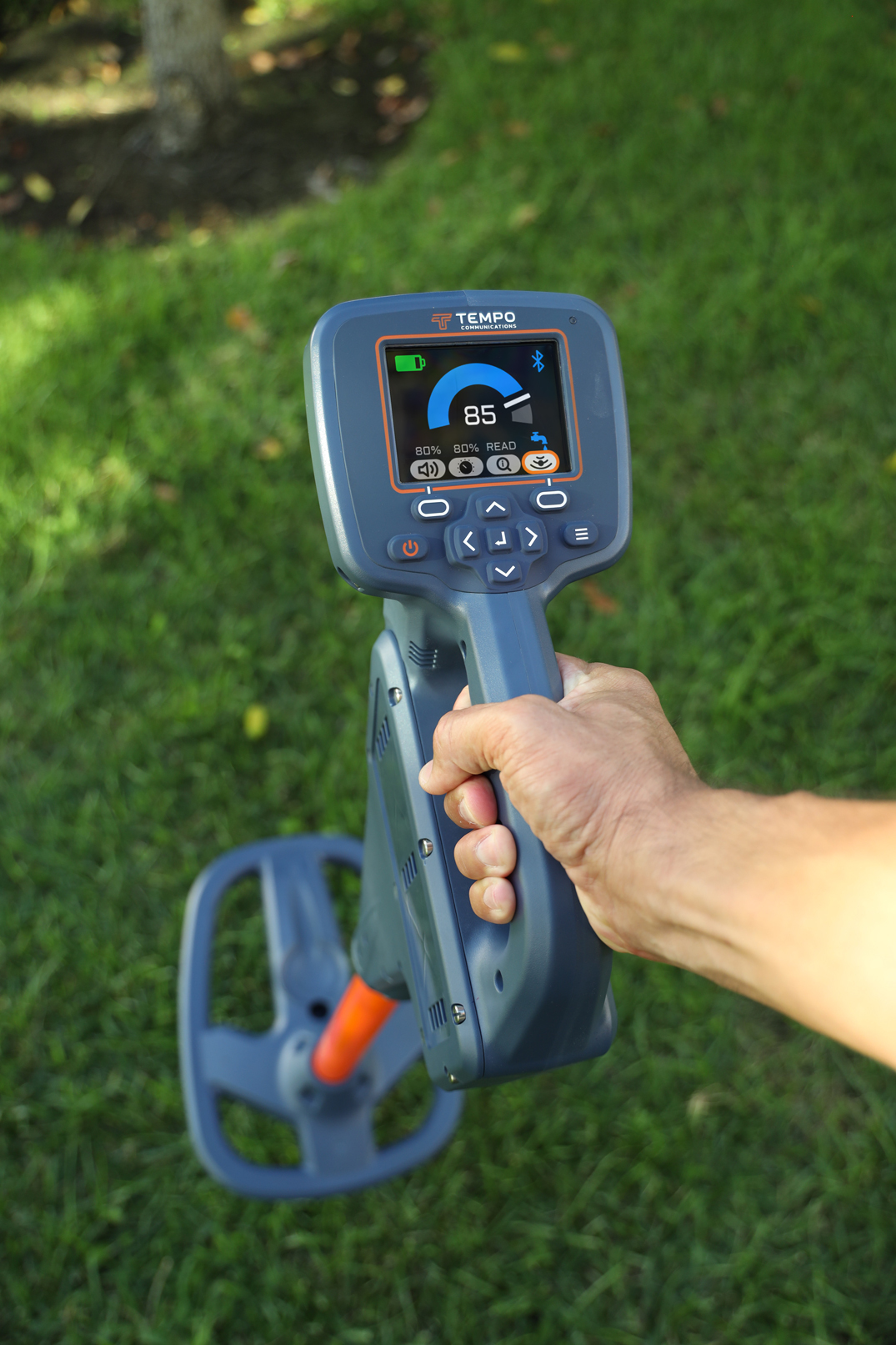

  • Easy to read color LCD
  • Rugged construction rated, IP54
  • Rechargeable unit
Attribute Name Attribute Value
Electrical Rechargeable Battery, Battery Life: 8 hours typical
Operating Temperature -4° to 122°F (-20°C to 50°C)
Storage Temperature -40° to 158°F (-40°C to 70°C)
Ingress Protection Rating IP54
Length 329mm
Width 241mm
Height 776mm
Weight 5.05 lbs (2.28 kg)
RFID Marker Detection Range
OmniMarker-ID 5 ft (1.5m)
Spike Marker-ID 3.3ft (1m)
Passive Marker Detection Range
OmniMarker II 5 ft (1.5m)
Spike Marker 3.3ft (1m)
