801K Premium Tone and Probe Kit

Cat No: 801K

Legacy UPC No: 783310086901

Where to Buy

Contact Sales

The Tempo Communications 801K Premium Tone and Probe Kit is a wire and pair tracing tool that is both universally compatible and virtually noise immune for fast, accurate wire identification. The 801K meets the requirements of today’s technician.

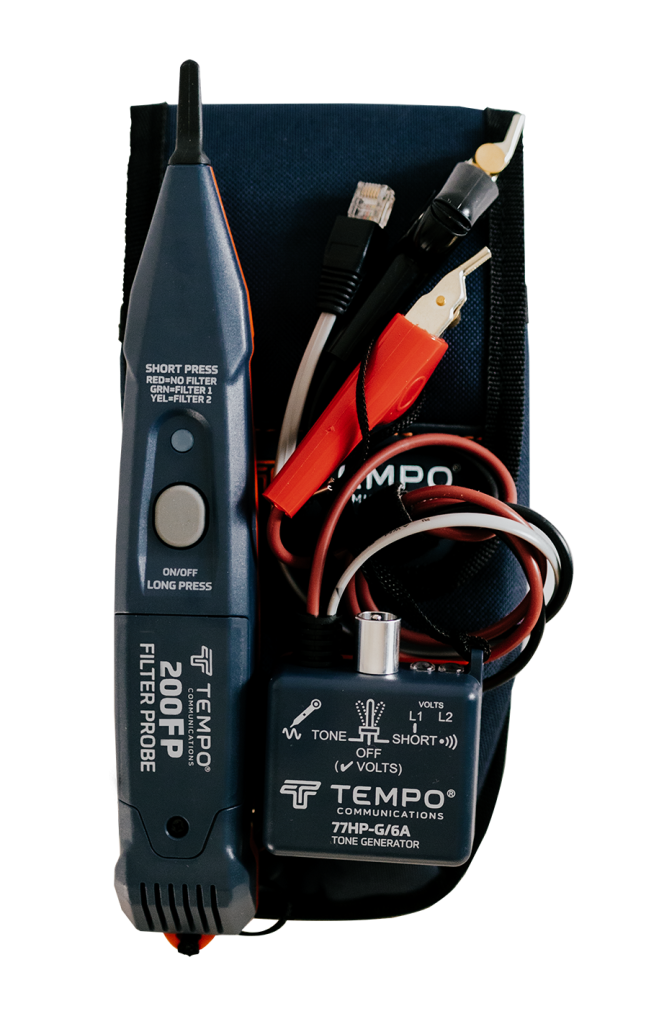

The 801K Tone and Probe Kit includes the 77HP/6A High Power Tone Generator and the 200FP Inductive Amplifier in a rugged woven polyester carrying case. The 801K represents the top-of-the-range in wire and cable identification. When first turned on the 200FP is in the normal tone probe mode, detecting and playing most voice frequency signals. With a short press of the control button, the probe enters the filtered mode, eliminating the hum and buzz created by light fixtures and power lines.

Patented – Patent #6946850

801K Premium Tone and Probe Kit801K Premium Tone and Probe Kit801K Premium Tone and Probe Kit
  • Fast, Accurate Wire Identification
  • Sends Tone to Identify Wires
  • Two Distinct Tone Signatures
  • Polarity Indication
  • Continuity Test
  • Probe uses 2 x AA cells for reduced cost
  • Headset Option for Noisy Environments
  • Adjustable Volume Control
  • Visual and Signal Strength Indication
  • Choice of Metallic or Plastic Probe Tip
  • 2-Line Modular Test Lead
  • 3-Colour LED identifies AC Ring Voltage
  • Rugged Industrial Design
Attribute Name Attribute Value
Application For More Accurate Wire Identification
Includes 77HP/6A High Power Tone Generator And 200 FP Filter Probe In A Convenient Cordura Case (700C)
Country of Origin US
Probe Specifications 200FP Inductive Amplifier
Gain 35dB
Impedance 100 MOHM
Frequency 500Hz – 5kHz
Tone Specifications 77HP/6A
Output Voltage 4.5VDC
Output Power +7 dBm
Voltage Protection 52VDC
