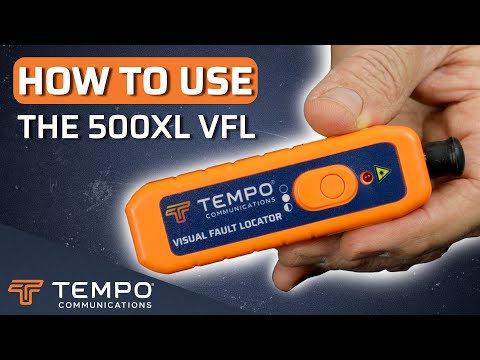

500XL Visual Fault Locator

Cat No: 500XL-C/A

UPC No: 810164860316

Contact Sales

The 500XL Visual Fault Locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long 10km reach of the 500XL allows the technician to confirm fiber continuity.

500XL Visual Fault Locator500XL Visual Fault Locator
  • Visual fault locating
  • Confirm fiber continuity
  • Allows the technician to quickly locate faults without the use of more expensive equipment
  • Class 3R designation, 5mW maximum output power
  • 10km distance
  • Universal 2.5mm bulkhead
  • Optional 1.25mm adapter available
  • Compatible with Singlemode and Multimode fibers
  • 2Hz modulation mode
Attribute Name Attribute Value
Maximum Output Power 5mW
Laser Classification Class 3R
Maximum Range 10km
Wavelength 650nm +/-10nm
Emitter Type Fabry Perot
Modes of Operation CW and 2Hz Modulation
Method of Display Operation Red/Green LED
Fiber Type Singlemode, Multimode
Connector Interface 2.5mm Universal, Optional 1.25mm adapter
Battery Life 20 hours AAA batteries
Weight 3.5oz (100g) (not including batteries)
Dimensions 4.3 x 1.1 x 0.67” (110 x 28 x 17mm)
Operating Temperature -10°C to +50°C
Storage Temperature -40°C to +70°C
