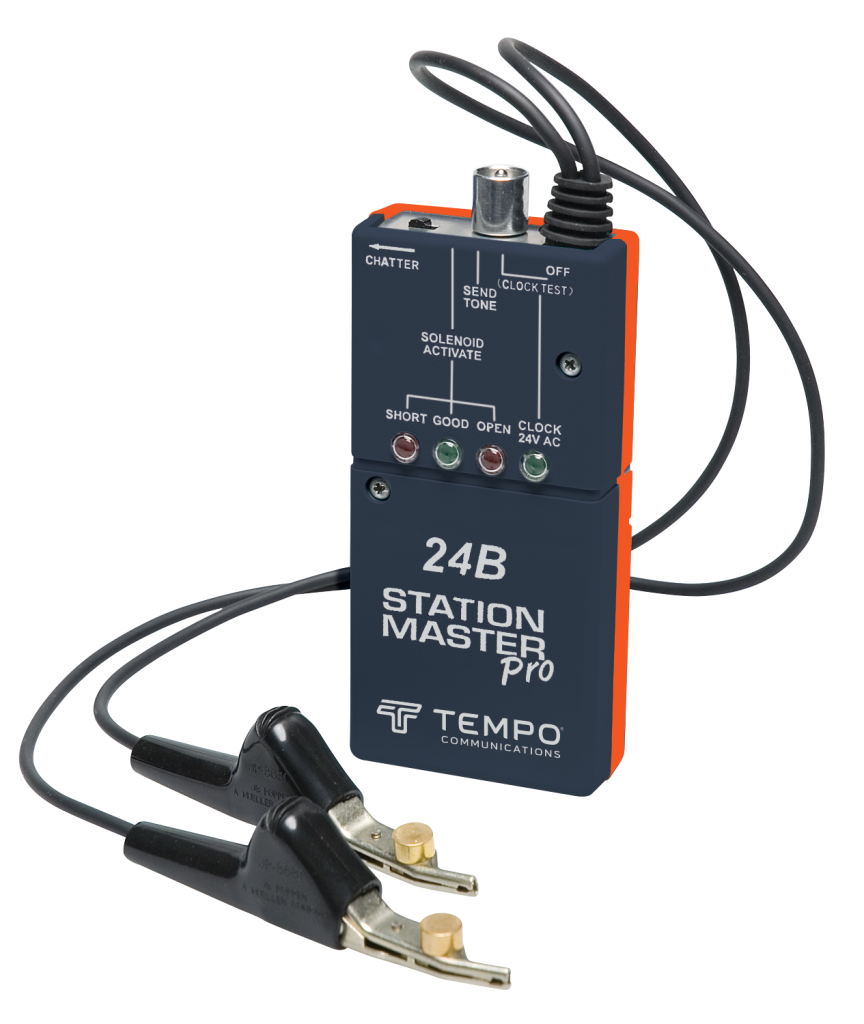

24B Station Master Pro

Cat No: 24B

UPC No: 783310867869

Where to Buy

Contact Sales

The Station Master Pro is a battery-operated irrigation system diagnostic tester combining solenoid activation and wire identification. LEDs indicate if sufficient voltage is being supplied by the controller and the condition of the solenoid. The solenoid activation mode is used to activate valve solenoids either from the controller or at the valve, along with testing continuity of the solenoids. Chatter mode assists in locating the valve by ear. Tone generator helps identify wires when combined with inductive probe. The test leads allow the technician to connect the unit without cutting or stripping the wires.

24B Station Master Pro
  • Troubleshoot irrigation systems
  • Activate and cycle solenoids
  • Test solenoids for continuity
  • Send tone to identify wires
  • Measure clock voltage
  • Low battery indication
  • Easy-to-understand LEDs
  • Test leads with "Bed-of-Nails" and piercing Pin Clips
  • 1-year limited warranty
Attribute Name Attribute Value
Battery 9 V Alkaline
Battery Life 3 HR Continuous
Includes 700C Carrying Case
Maximum Distance Range To Activate One Solenoid
  • 12 AWG Loop 3000.000 - 13000.000 FT
  • 14 AWG Loop 2000.000 - 8500.000 FT
  • 18 AWG Loop 500.000 - 3000.000 FT
Minimum Battery While Testing 10.5 VDC
Minimum Voltage For Clock LED 15 VAC
Replacement Part 700C Carrying Case
Solenoid Circuit Recharge 2.5 S
StorageOperatingTemperature 32 - 122 DEG F
Sub Brand Station Master
Voltage Rating 28 VAC
Item Status Date 01232007
Country of Origin US
