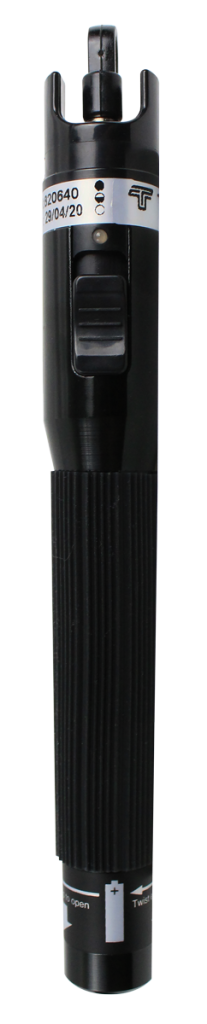

180XL Visual Fault Locator Kit

Cat No: 180XL

UPC No: 783310035787

Where to Buy

Contact Sales

The 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long reach of the 180XL allows the technician to safely confirm fiber continuity.

180XL Visual Fault Locator Kit180XL Visual Fault Locator Kit180XL Visual Fault Locator Kit180XL Visual Fault Locator Kit180XL Visual Fault Locator Kit
  • Visual fault locating
  • Confirm fiber continuity
  • Allows the technician to quickly locate faults without the use of more expensive equipment
  • Class 2 designation provides safe light levels for the technician
  • 5km distance
  • Universal 2.5mm bulkhead
  • Optional 1.25mm adapter available
  • Class 2 certification, 1 mW maximum output power
  • Compatible with Singlemode and Multimode fibers
  • 2Hz modulation mode
Attribute Name Attribute Value
Wavelength 650nm +/-10nm
Maximum Output Power 1 mW
Typical Output Power 700μW
Laser Classification Class 2
Modes CW and 2Hz Modulation
Display Red/Green LED
Fiber Type Singlemode, Multimode
Connector Interface 2.5mm Universal, Optional 1.25mm adapter
Battery AA (2 Included)
Battery Life 80 Hours with 3.9 Wh Batteries
Weight 0.26lbs, (120g) (not including batteries)
Dimensions 7.08” x 0.91” Dia (180mm x 23mm Dia)
Operating Temperature -10ºC to +45ºC
Storage Temperature -40ºC to +70ºC
Maximum Distance 5km
