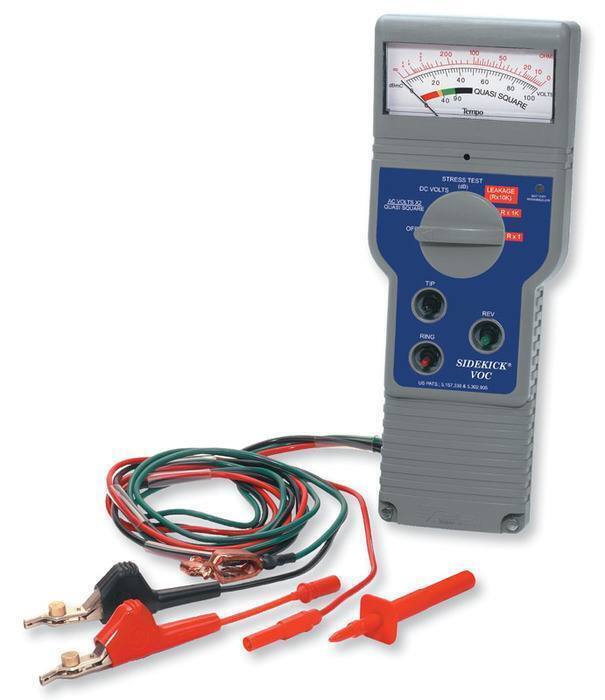

1143-5000 Sidekick VOC

Copper and DSL Test Set

Catalog Number: 1143-5000

Title	Description
1134-5029	Sidekick 7B
1137-5002	Sidekick T&N
144-5000	Sidekick T&ND
1138-5015	Sidekick Compa
1143-5000	Sidekick V.O.C.

The Sidekick family of telecom testers is the perfect instrument for troubleshooting the faults responsible for over 75% of all customer service interruptions. The Sidekick is the only troubleshooting tool that features the Stress Test to measure audible noise on a pair when “stressed” with 90dBrnC longitudinal excitation – key to identifying imbalances and series resistance opens. The Leakage Test also detects intermittent resistance faults undetectable with a typical VOM tester.

The Sidekick 7B quickly and accurately uncovers intermittent troubles other test sets can’t detect. The Sidekick T&N features transmission and noise testing and is available with a traditional analog or easy to read digital display, while the Sidekick VOC is tailored to the inside wiring found in CATV applications of VOIP.

Quickly and accurately uncovers intermittent troubles that other test sets can’t detect
Enables rapid and accurate testing on copper and cable pairs
Readable in bright sunlight
Advanced cable diagnosis and troubleshooting in a single test set
Industry leading ease of use and operation.
Helps technicians diagnose and troubleshoot problems with twisted pair cable
Install, qualify, and maintain copper and CATV services
Determines the stressed noise susceptibility of dry and working pairs
Measures resistance, AC/DC volts, and capacitive kick
Provides tone for twisted pair or crossed conductor identification
Test Tip-Ring, Tip-Ground, and Ring-Ground
Measures AC/DC Volts, Leakage, resistance, and loop current
Performs circuit loss, circuit noise (metallic noise), and power influence test

Sidekick VOC Datasheet

Attribute name	Attribute Value
AC Voltage	0 - 200 V RMS
DC Voltage	0 - 100 VDC
Dimensions	10.75 x 4.25 x 2.5 inches
Leakage	RX10K: Reads 0 To 20 MOHM
Power	Four AA batteries
Resistance	RX1: Reads 0 To 2000 OHM \| RX1K: Reads 0 To 2 MOHM
Type	V.O.C.
Voltage Measurement	<ul><li>0 - 100 VDC</li><li> 0 - 200 VAC RMS</li></ul>
Weight	2 lbs.
Stress Test	0 to 82 dBrnC
Operating Temperature	-20°C to +60°C

1143-5000 Sidekick VOC
