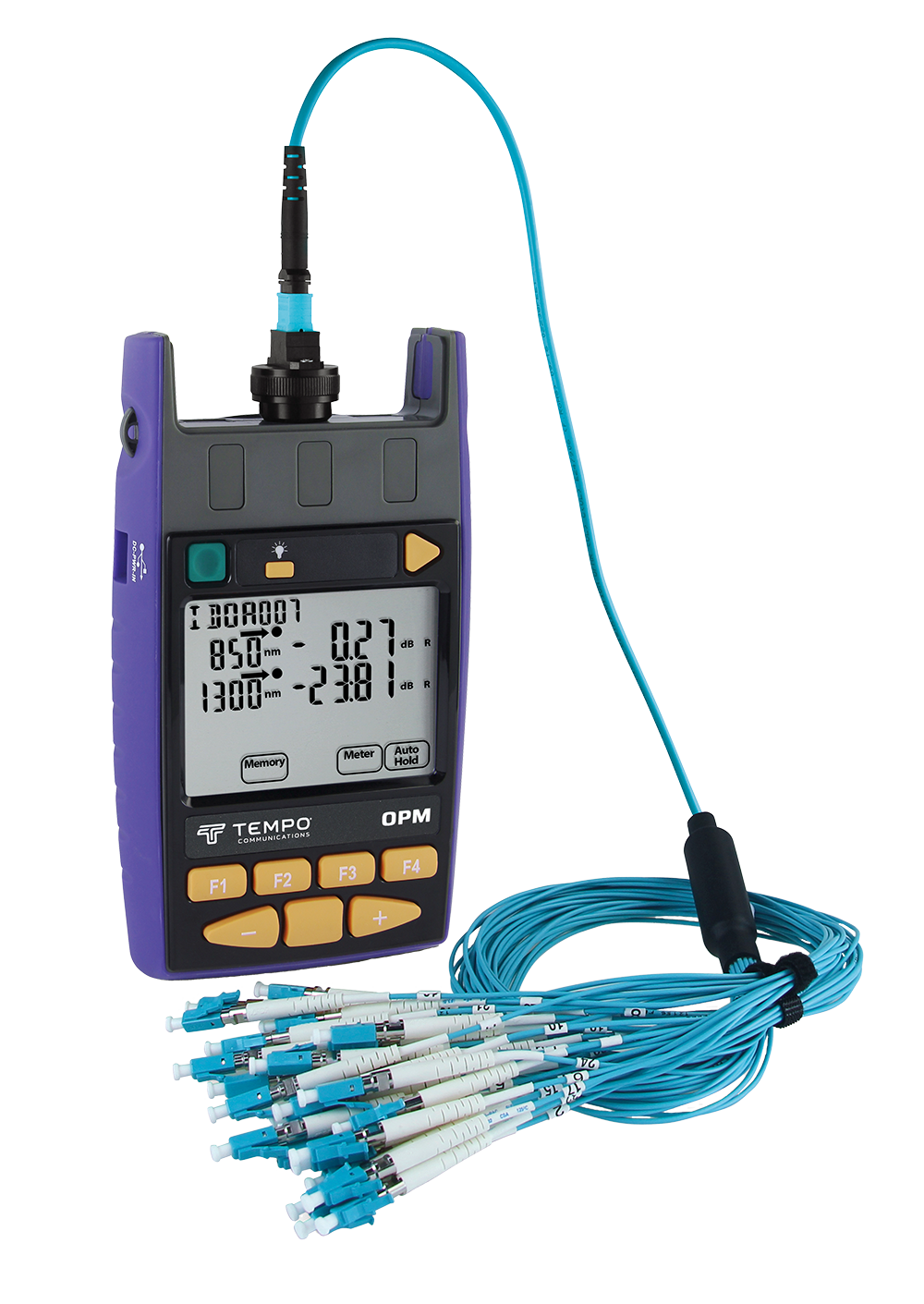

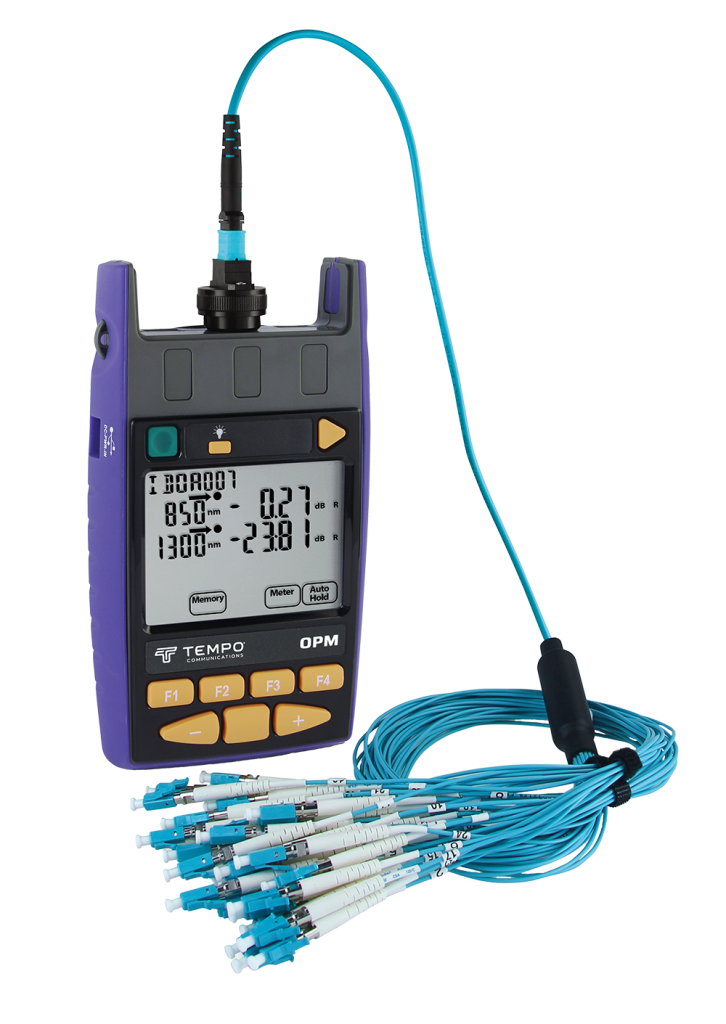

Large Area MPO Optical Power Meter, T2600XL-GE7
Cat No: T2600XL-GE7
UPC No: 810025412111
An optical power meter for professional installers and contractors, to test power, loss, and continuity on multimode + single mode fiber optic systems up to +15 dBm, with a 7 x 3 mm Ge detector, Ideal for testing: all multi-fiber ribbon cable such as MMC or MPO styles 16 -32 fiber, 12 to 72 fiber, SM & MM, and other connector styles and LC/ SC etc. fiber optic systems. This full feature instrument has comprehensive report-generation capabilities and a variety of useful features for maximum productivity and flexibility. For all current / proposed versions of fiber optic Ethernet and InfiniBand.
- Productivity power meter
- Large area detector for ribbon, MPO 16 / 32 testing
- Ideal for cable installers
Large Area MPO Optical Power Meter, T2600XL-GE5
Overview
- Easy to use, rugged & versatile
- Specifically optimised for MMC / MPO 12 x n, 16 x n fiber ribbon connectors
- 32 calibration λ, 1% accuracy ISO/IEC 17025 traceable
- Improved high power accuracy
- Autotest with up to 3 λ displayed
- Long battery life & micro USB external power
- Large back-lit LCD, sunlight readable
- Interchangeable optical connectors
- Large memory with text naming & time stamp
- KITS™ reporting software with data security
- One button memory dump to USB Flash Drive
- MultiFiber ID tone detection
- Full QA & linearity test report
- Made in Australi
Documents
Specifications
| Attribute Name | Attribute Value |
|---|---|
| Detector type | Ge (7 x 3.5 mm) |
| Response wavelength | 600 ~ 1650 nm |
| Calibration wavelengths | 660, 780, 820, 850, 880, 910, 940, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1577, 1590, 1610, 1625, 1650 nm |
| Power range | +15 ~-30 dBm (for 660 ~ 820 nm, 1590 ~ 1650 nm) / +15 ~ -40 dBm (for 850 ~ 1570 nm) |
| Mid-range linearity | 0.06 dB (typical) |
| Wavelength sensitivity (± 30 nm) | 0.2 dB (typical) |
| Response uniformity across detector | 2 % (0.09 dB) |
| ID tone detection & Autotest sensitivity | -30 dBm |
| General Handheld Power Meter KI 2600 Series specifications | |
| Calibration accuracy | ±1 % (0.06 dB) |
| Calibration validity | 3 years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization sensitivity | < 0.05 dB (typical) |
| Tone detection | 150 ~ 9999 Hz ± 1 % |
| Power | 2x AA (LR6) Alkaline / External via micro-USB |
| Battery life | Up to 1000 hours |
| Auto-off | Selectable |
| USB interfaces | micro-USB for power & software / USB-A Flash Drive |
| Software | KITS (free download) |
| Memory | 1000 (4-λ tests) / Unlimited on USB Flash Drive |
| Size | 124 x 81 x 25 mm |
| Unit weight | 0.42 Kg |
| Shipping weight | 1.5 kg |
| Operating / storage temperatures | -15 to 55 °C / -25 to 70 °C |
| Relative humidity | 0 ~ 95 % |
| Warranty | 3 years |
| Country of Origin | Australia |
