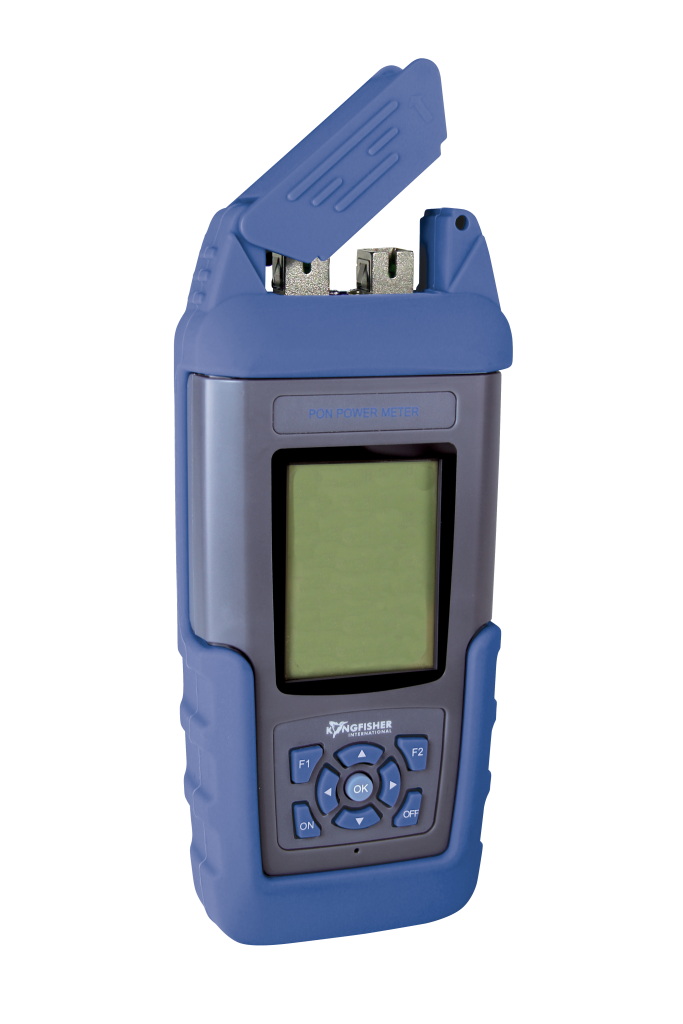

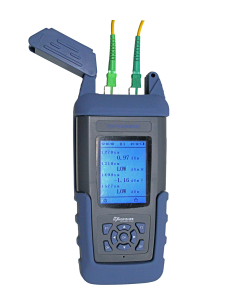

GPON/PON Power Meter, T6102AA-APC
Cat No: T6102AA-APC
UPC No: 810025419639
An economical, in-line PON meter used during FTTH / PON service turn-up or maintenance, to perform a live optical power test with optical loss test (OLT) equipment.
- Easy to use, compact, rugged & economical true PON / GPON tester
- Fast reading and settling time
- Sunlight-readable backlit display
- Pass/fail display and LEDs
- 1310 nm upstream, 1490/1550 nm downstream
- 18 hr from AA alkaline batteries & auto off
- 100 test memory & real-time clock
- PC software for downloading results & setting pass/fail
- 1-year warranty, 3-year calibration cycle
- Full QA report with ISO9001-compliant calibration
Note: This instrument is designed to test PON transmission power. Alternatively, loss testing use requires a non-standard KI2000 series test source with specific CWDM-compliant lasers.
Overview
Key Features:
- Metal-free connectors: to avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.
- Runs on Alkaline Batteries
- Genuine 3-year calibration validity: genuine 3-year optical power meter re-calibration validity.
Documents
| Title |
|---|
| Brochure T6102 Rev12 |
Specifications
| Attribute Name | Attribute Value |
|---|---|
| Detector type | InGaAs |
| Passband | Upstream: 1310 nm (FWHM: 1260 ~ 1360), Downstream: 1490 nm (FWHM: 1470 ~ 1505) & 1550 nm (FWHM: 1535 ~ 1570) |
| Power range | -40 ~ +10 dBm (@ 1310 nm) / -45~ +10 dBm (@ 1490 nm) / -45 ~ +23 dBm (@ 1550 nm) |
| Damage level (dBm) | +10 dBm (@ 1310 nm) / +10 dBm (@ 1490 nm) / +23 dBm (@ 1550 nm) |
| Isolation between wavelengths | > 40 dB |
| Uncertainty | 0.5 dB (max) |
| Linearity | 0.1 dB |
| Polarization loss | < 0.25 dB |
| Insertion Loss | < 1.5 dB |
| Return loss | 50 dB |
| Display size | 44 mm x 57 mm |
| Show results | dBm / W / dB, pass / fail |
| Display resolution | 0.01 dB |
| Memory | 99 records of 3-wavelength test |
| Data software | via mini-USB |
| Battery | 4x AA (LR6) Alkaline |
| Battery life | 18 hours |
| Auto off | Selectable |
| Instrument case | 1.2 m drop tested |
| Operating / storage temperature | -10 ~ +60 °C / -25 ~ +70 °C |
| Relative humidity | 95 % |
| Unit size | 200 mm x 90 mm x 43 mm |
| Unit weight | 0.4 kg |
| Shipment weight | 1 kg |
| Calibration cycle (recommended) | 3 years |
| Warranty | 1 year |
