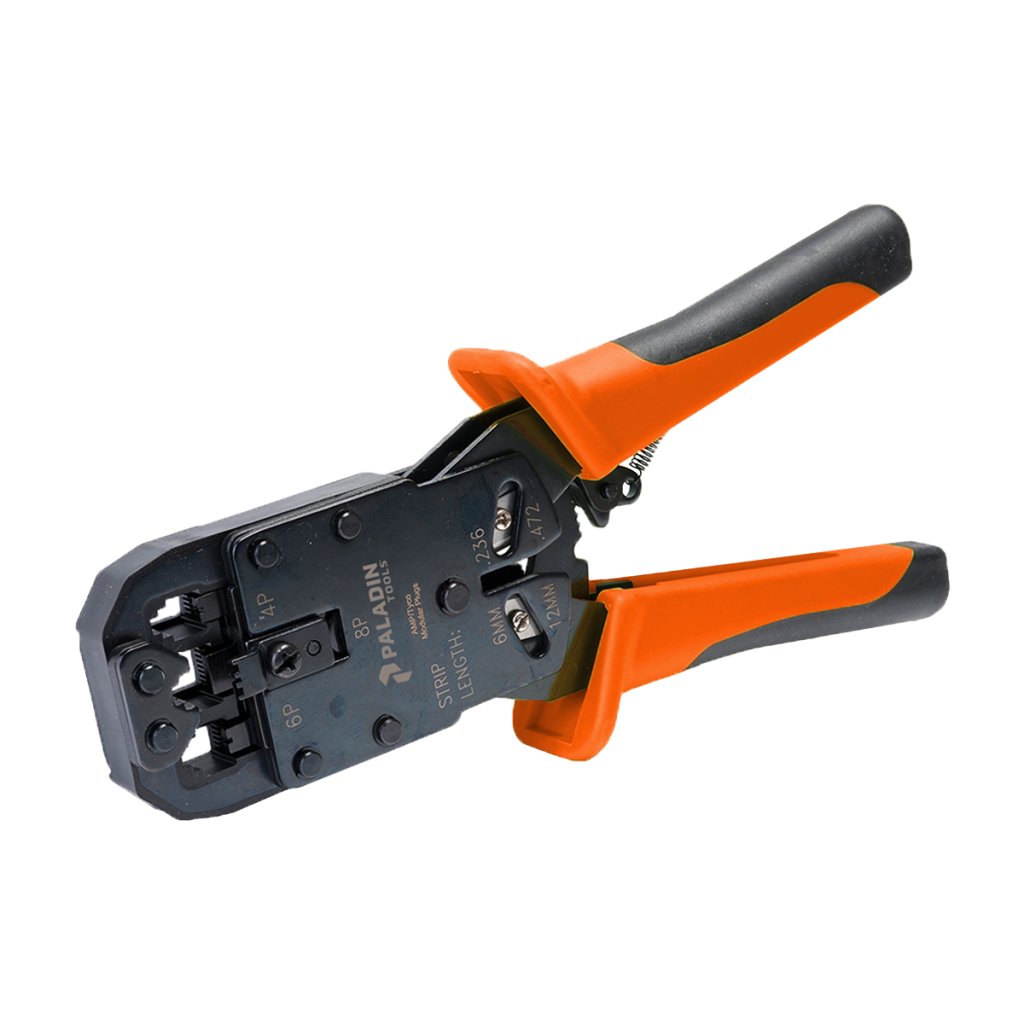

PA1540 CRIMPER ALL-IN-ONE AMP CLAMSHELL
Cat No: PA1540
UPC No: 769328100495
- Crimps 4-position RJ22 connectors
- Crimps 4- and 6-position RJ11/RJ12 connectors
- Crimps 8-position RJ45 (non-keyed) connectors
- Embedded cable cutter and stripper
- Crimps 28-24 AWG (.08 – .20 mm2) telephone and data cables
- Comfortable rubber-embedded handles
- Built-in safety ratchet release
Documents
Specifications
| Attribute Name | Attribute Value |
|---|---|
| Application | For crimping 4-Position RJ22 Connectors, 4 and 6-Position RJ11/RJ12 Connectors, 8-Position RJ45 (Non-Keyed) Connectors, 28-24 AWG (0.080 - 0.200 SQ-MM) telephone and data cables |
| Cable Type | RJ22, RJ11/RJ12, RJ45 |
| Crimping Range | 28-24 AWG |
| Handle Type | Rubber Embedded |
| Overall Length | 8.070 IN (205.000 MM) |
| Package | Clamshell Pack |
| Replacement Part | PA2530 Replacement blade kit |
| Type | All in One Pro, Telephone |
| Weight | 19 OZ (525.000 G) |
| Item Status Date | 01012009 |
| Country of Origin | TW |
| UNSPSC | 43223313 |
| International Harmonize Code | 8205595560 |
| RoHS Indicator | U |
| MSDS Update Flag | N |
