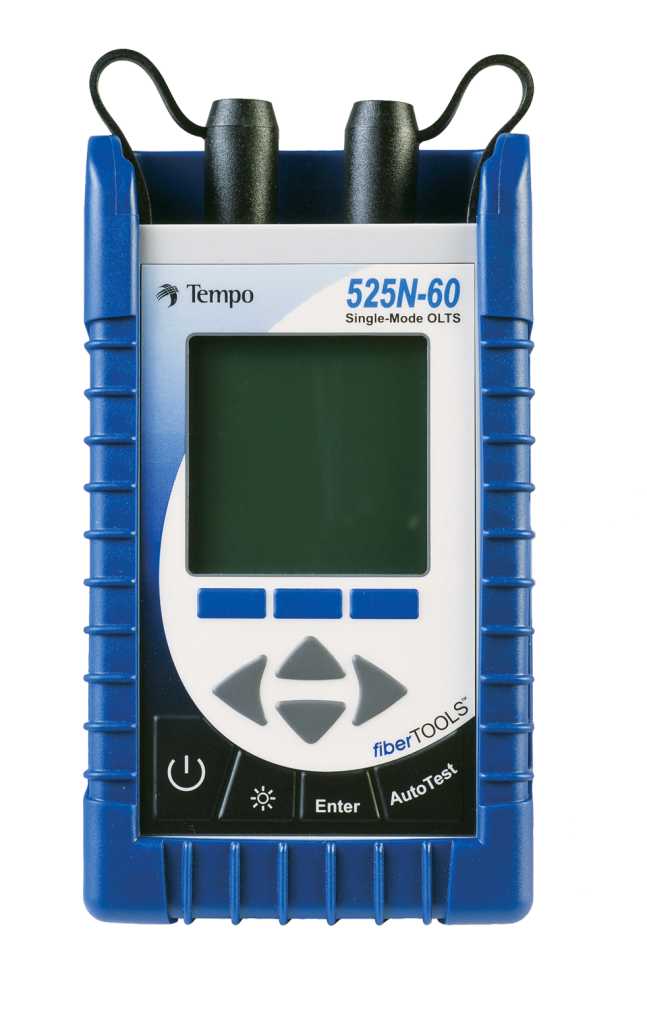

525N-60 Smart Optical Loss Test Set
Cat No: 525N-60
UPC No: 783310210160
The 525 family is a rugged and dependable line of smart cable acceptance testing instruments designed for telecom and datacom high count cable acceptance testing. The 525 delivers link loss-testing the smarter way, creating the easiest means for testing fiber optic cable in the field.
Overview
- Automated bi-directional testing
- Test End-to-End Loss and Return Loss
- One button AUTOTEST
- Single mode and Multi-mode
- Optical Power Meter
- Optical Return loss meter
- 55dB measurement range
- Stores over 1000 measurements
- Rechargeable batteries
- Rugged case
Documents
Specifications
| Attribute Name | Attribute Value |
|---|---|
| Absolute Accuracy | Plus Or Minus 0.25 DB |
| Accessory |
|
| Accuracy | Plus Or Minus 0.25 DB |
| Battery Life | Less Than 8 HR |
| Calibrated Wavelengths | 1310 NMTR, 1550 NMTR |
| Center Wavelength |
|
| Connector Type | UCI-UPC Flat Polish Adapter 9/125 SM |
| Detector Type | InGaAs |
| Display | 10 To -70 dBm |
| Display Type | Graphics Liquid Crystal With Backlight |
| Fiber Type | Singlemode 9/125 UM |
| Laser Classification | Class 1 CFR 1040 |
| Measurement Units | DBM, DB |
| Model | 525N |
| Number Of Calibrated Wavelength | 7 |
| Output Power | Less Than - 10 DBM |
| Output Stability | Plus Or Minus 0.15 DB/8 HR |
| Power | Internal Rechargeable Nickel Metal Hydride Battery |
| Relative Humidity | 0 To 95 PCT Non-Condensing |
| Resolution | 0.01 DB |
| Return Loss | 10 - 45 DB For Measurement Range, 0.5 DB Accuracy |
| Size | 7.600 IN X 4.300 IN X 2.300 IN (19.300 CM X 10.900 CM X 5.800 CM) |
| Spectral Width | Less Than 5 |
| Standard Connector Type | FC, SC |
| StorageOperatingTemperature | -20 To 60 DEG C0 - 50 DEG C |
| Test Port Measurement Range | 60 DB |
| Type | Singlemode |
| Weight | 2.200 LB (1.000 KG) |
| Country of Origin | US |
| RoHS Indicator | U |
| MSDS Update Flag | N |
